Getting Started with the AD140 Agrowdrill

Ready. Set. Sow.

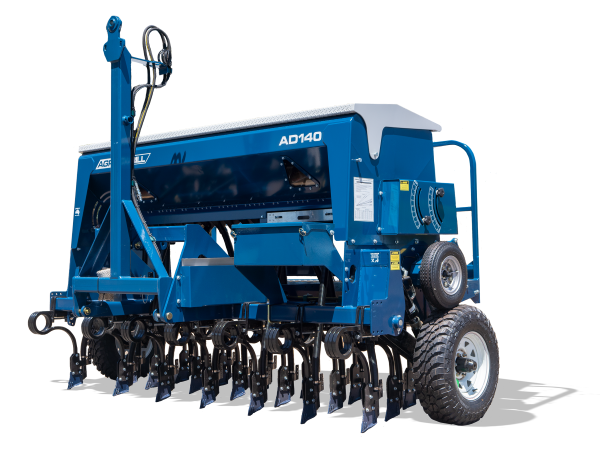

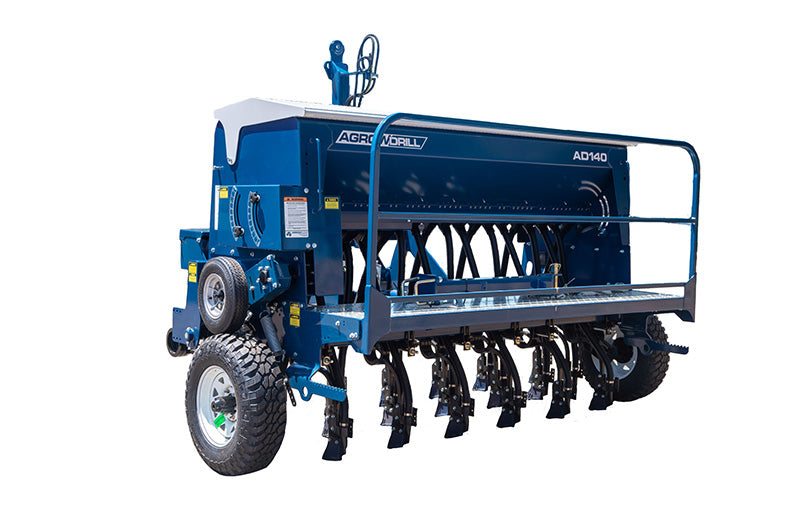

AD140 Agrowdrill with stowed hitch on white background

📝 1. Register Your Machine

By registering your machine's details, you gain access to tailored, complimentary services to keep your machine running at its best.

Make sure you or your dealer have submitted your PDI SUI.

Register →

⚠️ 2. Review Manuals & Safety Docs

Agrowplow user guide icon
Operator's Manual

DOWNLOAD

Agrowplow user guide icon
FarmScan Manual

DOWNLOAD

Agrowplow user guide icon
Spare Parts Manual

DOWNLOAD

🧰 3. Get To Know Your Machine

🎬 Join Chris from Agrowplow as he takes you through all the main features of the AD140 direct drill.

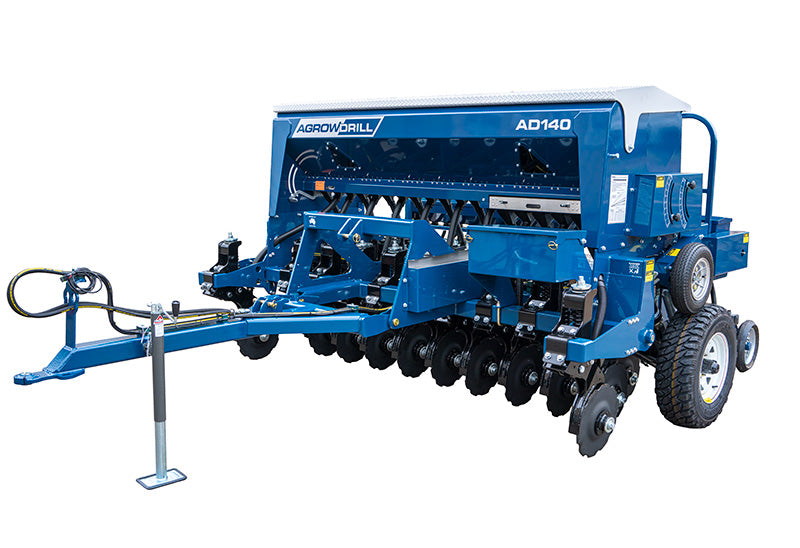

Machine Options

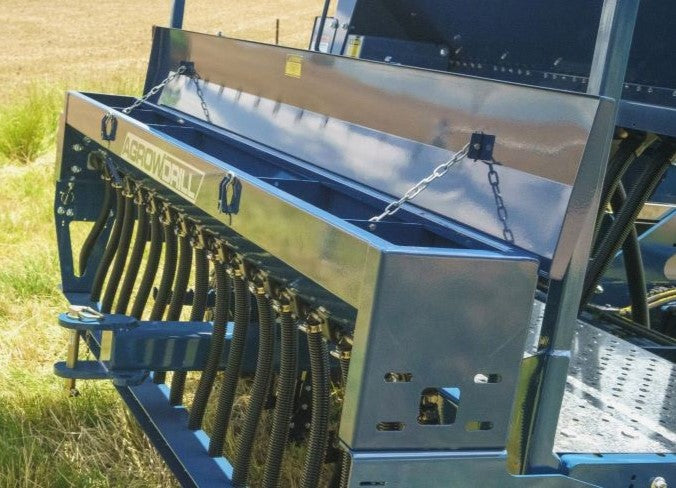

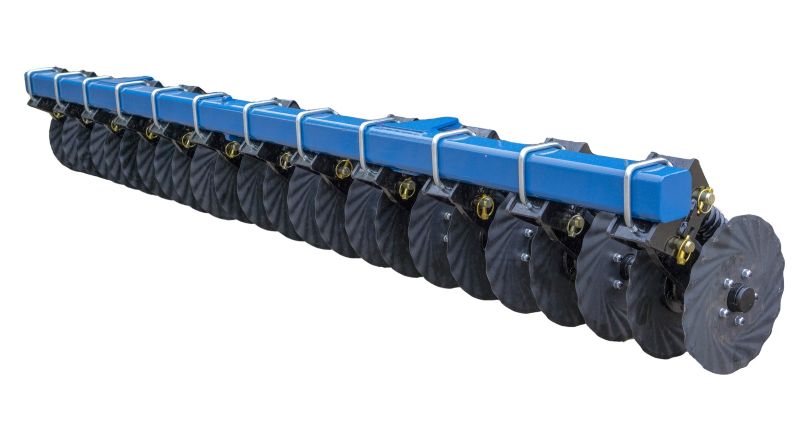

Increase the versatility of your AD140 with a range of machine options including bean rollers, coulters, road kit, harrows, small seeds box, presswheels, rear-tow hitch, and more.

Flexi-Roller

Independent roller rings allow the Flexi-Roller to follow the contours of the earth, providing maximum ground contact and ensuring the best possible seedbed finish.

Rubber Tyre Roller

The gang of solid rubber tyres press firmly into the ground following seeding with enough weight to distribute the gentle compaction evenly across flat paddocks.

⚖️ 4. SETUP AND CALIBRATION

🔧 5. Trouble-shooting & Common Questions

Refer to the Troubleshooting Guide (pg 45-47) in your Agrowdrill Operator's Manual.
Still have questions?
Call our team on 1300 722 491.

The Agrowdrill variable gearbox requires no maintenance apart from an annual oil level check and an oil change every three
years. Engine oil or any light gear oil should be adequate, engine oil 5W / 30 is suggested.

For further information, read our article on Servicing the Agrowdrill Gearbox.

See "6.3. Lubrication" on page 39 of your Operators Manual.

The lubrication schedule for the Agrowdrill is as follows:

Drive Chains: Apply oil every 20 working hours

Wheel Axle Bearings: Grease Annually

Chains: Wash and Grease every 200 Working Hours

Gearbox: Check Oil every 200 Working Hours, Change every 3 Years

Coulter Pivots Grease every 20 Working Hours

Coulter Axles Grease Annually

When things go wrong, we are here to help.

Our Warranty Repair Team will help you get your machine back in the field as quickly as possible and keep you informed every step of the way.

Submit a Warranty Claim →
