AP11 Agrowplow

Your compact ripper for paddock renovation of pastures, cereals, and horticulture crops.

The 100x100x9 mm RHS steel frame has the strength you need for tough ripping and the #8-9 Hybrid Shank Assembly shatters hardpan compaction up to 400mm deep.

View Specifications
400 mm

Working Depth

1.65 or 2.31 m

Working Widths

330 mm

Shank Spacing

Smart ripping.

Smart ripping.

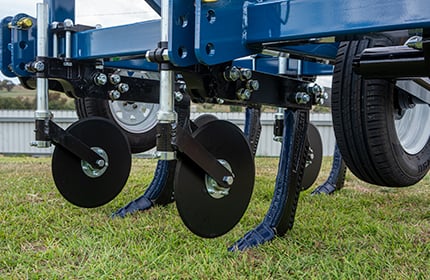

The AP11 is available with five or seven shanks with shearpin breakout. It features our #8-9 Hybrid Shank Assembly, which means you benefit from the extra-tough #9 blade and full-length shinguard for long-lasting protection of your shanks.

The shanks can be fitted with leading coulters to further enhance shank performance in high-trash conditions.

AP11 Agrowplow deep ripper with coulters

Easy manoeuvrability and control.

Its narrow width design allows you to transport with confidence through gates and on public roads. Plus the AP11 attaches to the tractor via 3 point linkage (CAT2) allowing for easy raising and lowering of the implement.

Built to your needs.

Built to your needs.

Available options for the AP11 include:

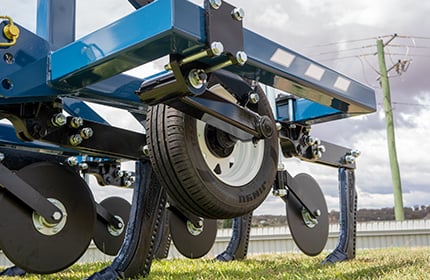

  • Two 175/75 R13 depth-stop wheels that are easily adjusted to control the ploughing depth.
  • Rear tow hitch with or without hydraulic lines.
  • Various shank options.
  • Toolbox.

Get an Instant Quote

Build and customise the perfect Agrowplow machine for your farm with our easy online pricing and configuration tool.
Build and Configure

Superior performance in tough Australian conditions.

Longer Lifespan

Keep going season after season.

Spare Parts

Comprehensive online spare parts store.

Agrowplow AP11 Specifications

AP11 5 x 330 7 x 330
Working Rows 5 7
Row Spacings 330 mm
Working Width 1.65 m 2.31 m
Max. Working Depth 400 mm
Shank Style #8-9 Hybrid Assembly
Breakout Rigid 1,089 kg (2,400 lbs)
Hydraulic -
Drawbar Power 80-120 hp 100-140 hp
Frame 100 x 100 x 9 mm RHS
No. Toolbars / Spacing 2 / 1000 mm
Hydraulic Level Lift -
Linkage Type CAT2 three point linkage
Wheel Type 175/75 R13
Transport Width 2.1 m 2.75 m
Weight 500 kg 600 kg
Shank Options Coulters
Inclusion plates
Mulch blades
Fertiliser tubes
Machine Options Rear tow hitch
Hydraulic hose kit for RTH
Trailing Roller Options Flexi-Roller Mk2 & Mk2 HD
Flexi-Roller hydraulic lift kit

Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.

All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.
