Shatter deep compacted hardpans up to 450mm for mid-size farming operations.
The AP52 features the same performance to match the largest of our trailing deep ripper models in a compact three-point linkage frame. Available with mounted Flexi-roller.
The heavy-duty 150x150x9 mm frame alongside our innovative #9 Shank Assembly makes the AP52 perfect to shatter deep compacted hardpans up to 450 mm.

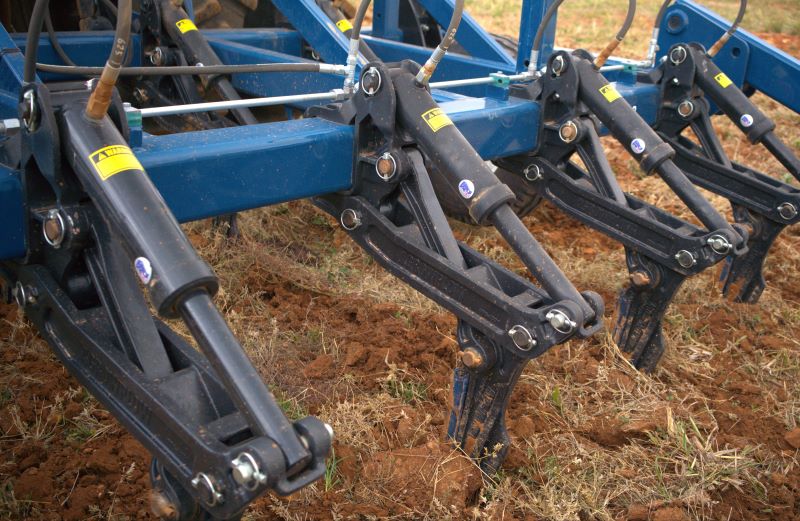

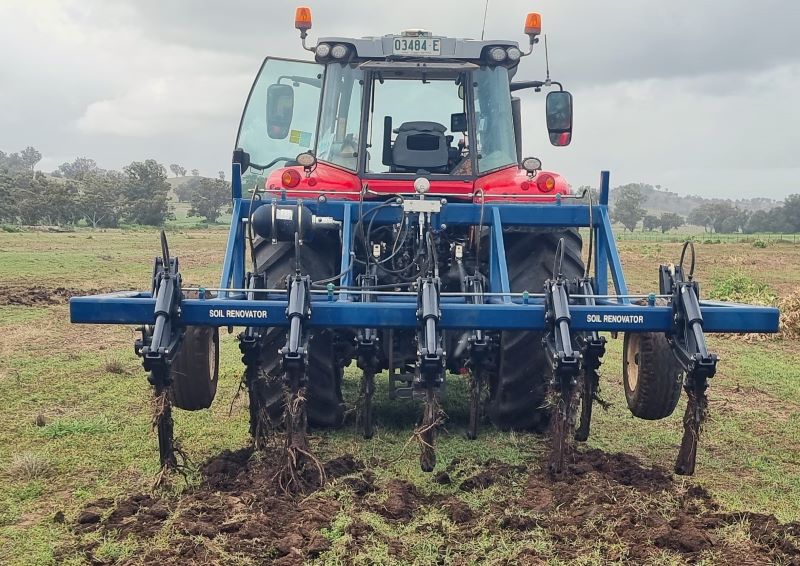

The rigid recoil shank has a huge 4,790 kg breakout at the blade and the hydraulic recoil option has over 1,846 kg breakout at the blade.

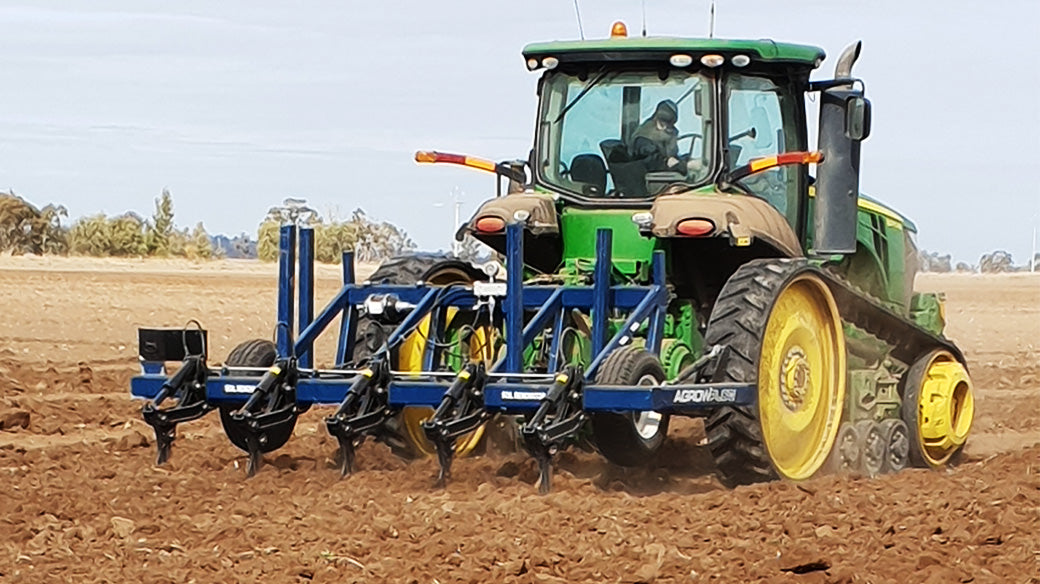

The mounted design, along with the narrow profile of the #9 shank, enables the AP52 to get the job done even when hitched to a modest tractor with as little as 180 hp. This makes the ripper ideal for mid-sized farms where heavier farm machinery results in increased soil compaction and reduced crop prosperity.

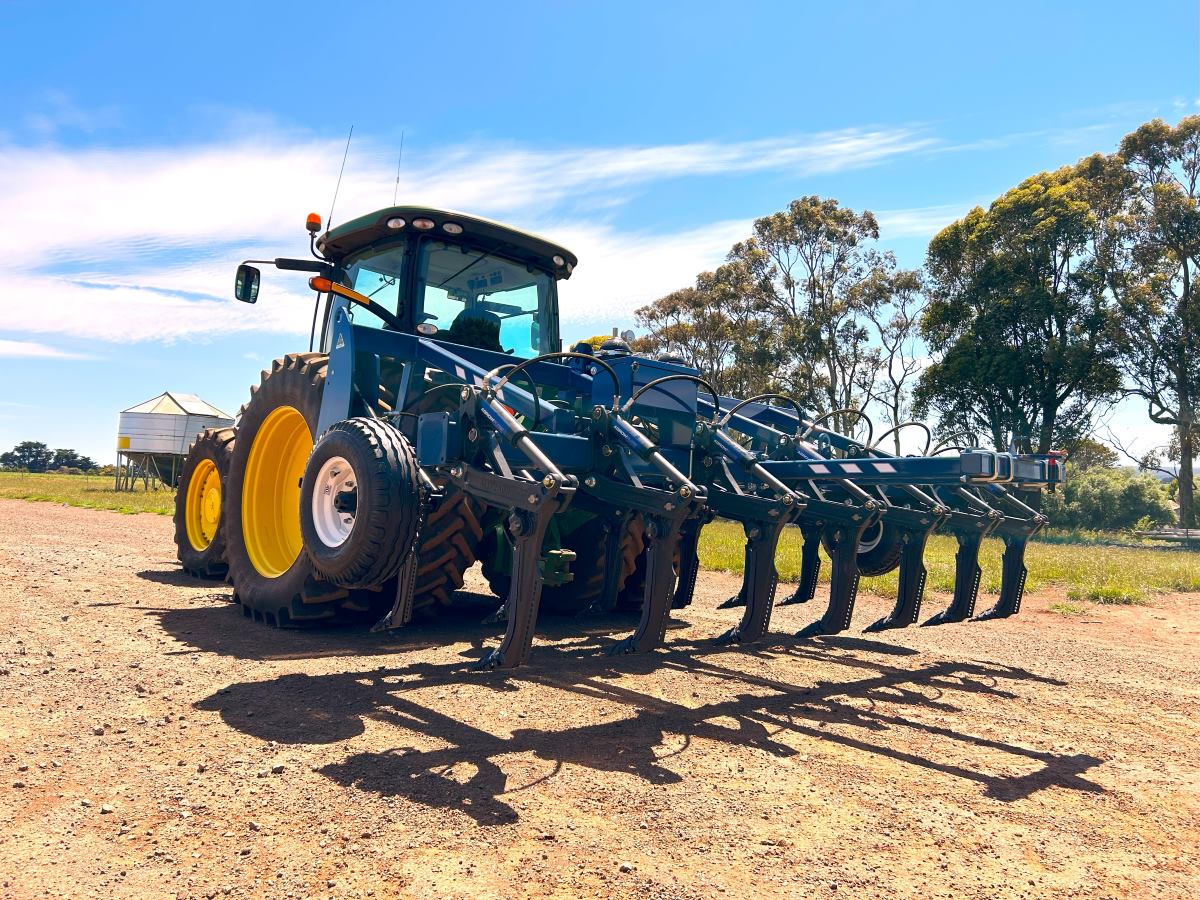

The AP52 deep ripper is available with 9, 11, 13 or 15 shanks. Custom frame and shank layouts are available on request.
The AP52 supports a range of additional shank options including:
FLEXI-ROLLER:

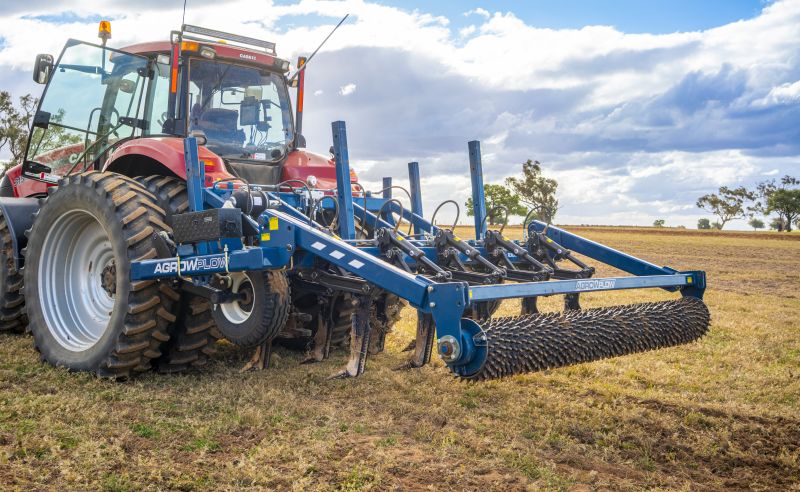

Break up crusting and soil clods in a single pass with a mounted Flexi-Roller, or add a rear tow hitch with a trailing Flexi-Roller.
| AP52 | 9 x 380 | 11 x 380 | 13 x 380 | 15 x 380 | 11 x 409 | 15 x 400 | |
|---|---|---|---|---|---|---|---|
| Working Rows | 9 | 11 | 13 | 15 | 11 | 15 | |
| Row Spacings | 380 mm | 409 mm | 400 mm | ||||
| Working Width | 3.42 m | 4.18 m | 4.94 m | 5.7 m | 4.5 m | 6.0 m | |
| Max. Working Depth | 450 mm | ||||||
| Shank Style | #9 Shank Assembly | ||||||
| Breakout | Rigid | 4,790 kg (10,560 lbs) | |||||
| Hydraulic | 1,846 kg (4,070 lbs) | ||||||
| Drawbar Power | 180-270 hp | 220-330 hp | 260-390 hp | 300-450 hp | 220-330 hp | 300-450 hp | |
| Frame | 150 x 150 x 9 mm RHS | ||||||
| No. Toolbars / Spacing | 2 / 1.45 m | ||||||
| Hydraulic Level Lift | - | ||||||
| Linkage Type | CAT3 three point linkage | CAT4 three point linkage | |||||
| Wheel Type | 11.5/80-15.3 implement | ||||||
| CTF Spacings | 3.5 m | 3.2 m | 5.0 m | 5.7 m | 4.5 m | 6.0 m | |
| Transport Width | 3.5 m | 4.3 m | 5.1 m | 5.8 m | 4.6 m | 6.1 m | |
| Weight | Rigid | 2,000 kg | 2,700 kg | 3,000 kg | 3,300 kg | 2,600 kg | 3,400 kg |
| Hydraulic | 2,900 kg | 3,300 kg | 3,800 kg | 4,000 kg | 3,600 kg | 4,300 kg | |
| Shank Options | Furrowers Inclusion plates Mulch blades Sweeps Fertiliser tubes |
||||||
| Machine Options | Rear tow hitch Hydraulic hose kit for RTH |
||||||
| Roller Options | Flexi-Roller (mounted) Flexi-Roller Mk2 & Mk2 HD (trailing) Flexi-Roller hydraulic lift wheel kit (trailing) |
||||||
