No-compromise, high performance disc seeder with broadacre-quality construction.
Designed for high-capacity, and weight to sow in hard and challenging seeding environments, this machine features one of the best disc units on the market.

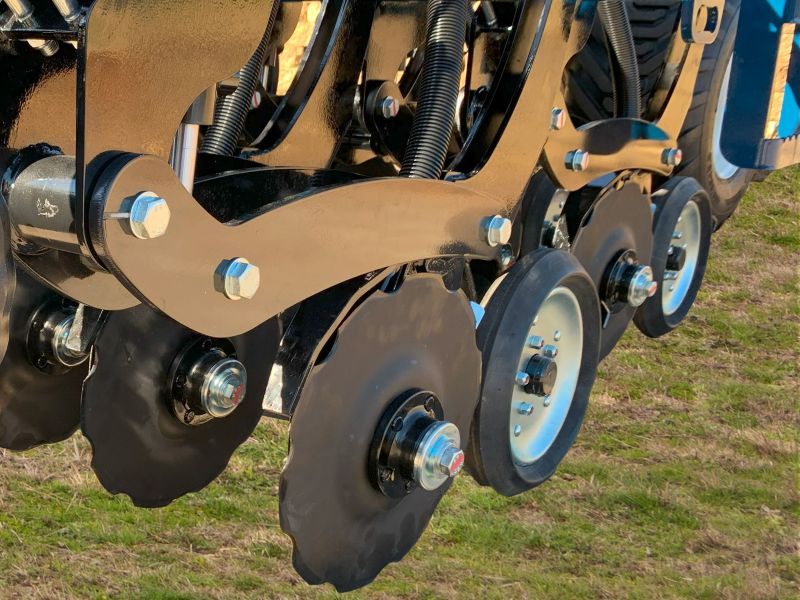

The AD640 features a heavy-duty ground-following double-disc unit with a large built-in presswheel mounted on a parallelogram undercarriage.
This advanced design uses hydraulically adjustable down pressure to deliver optimal seeding and consistent seed placement over any terrain.
Non-greaseable hubs and teflon-lined spherical pivots ensure simple maintenance and reliable performance.

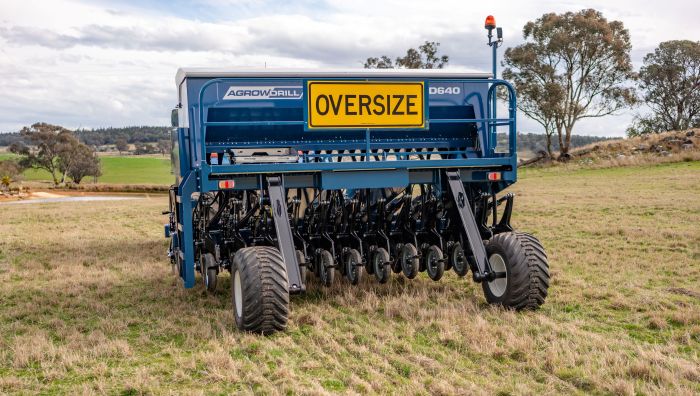

The AD640's design places the transport wheels at the rear within the working width, allowing for sowing across the entire transport width of the machine.
An optional transport kit is available for driving on public roads, including an oversize sign, work light, safety beacon, and LED indicators.
The heavy build of the AD640 aides soil penetration and furrow creation, which is
imperative for any disc seeder to ensure top results.
The AD640 boasts a large seed/fertiliser hopper, ensuring you spend less time refilling seed and fertiliser and more time working.
No compromises have been made with this seeder, with broadacre-quality construction and performance.
The lid is powder coated to withstand the harsh Australian weather and the internal hardware of the box is fully stainless steel.
| Model | 18 x 200 | 22 x 200 | 20 x 150 | 24 x 150 | 30 x 150 | |
|---|---|---|---|---|---|---|
| Sowing Rows | 18 | 22 | 20 | 24 | 30 | |
| Row Spacings | 200 mm (8") | 200 mm (8") | 150 mm (6") | 150 mm (6") | 150 mm (6") | |
| Working Width | 3.60 m | 4.40 m | 3.00 m | 3.60 m | 4.50 m | |
| Transport Width | 3.60 m | 4.40 m | 3.00 m | 3.60 m | 4.50 m | |
| Undercarriage Options | 300 series: Hydraulic ground following double disc (240-250 kg downforce) | |||||
| Seed / Fertiliser Box Capacity |
Front Box |
1080 L | 1320 L | 900 L | 1080 L | 1350 L |
| Rear Box |
1080 L | 1320 L | 900 L | 1080 L | 1350 L | |
| Frame | 150 x 150 x 9 mm RHS | |||||
| No. Toolbars | 2 | |||||
| Tyre Sizes | Flotation Tyre & Rim 400/60-15.5, 6 Stud | |||||
| Linkage Type | Trailing, two point lift assist | |||||
| Weight (estimate only) |
5.4 t | 7.0 t | 4.8 t | 5.8 t | 7.1 t | |
| Drawbar Power | 140-160 hp | 150-180 hp | 130-140 hp | 140-160 hp | 160-190 hp | |
| Machine Options | Road transport kit (oversize sign & lights) | |||||
| Trailing Roller Options | N/A | |||||
