AP31 plough with hydraulic shanks cutout on white background

AP31 Agrowplow

Your compact ripper for paddock renovation of pastures, cereals, and horticulture crops.

Prepare the perfect seedbed with the AP31 deep ripper. Shatter subsurface compaction wherever you find it without soil inversion and maintaining soil microbiology with the AP31's range of smart ripping features.

View Specifications

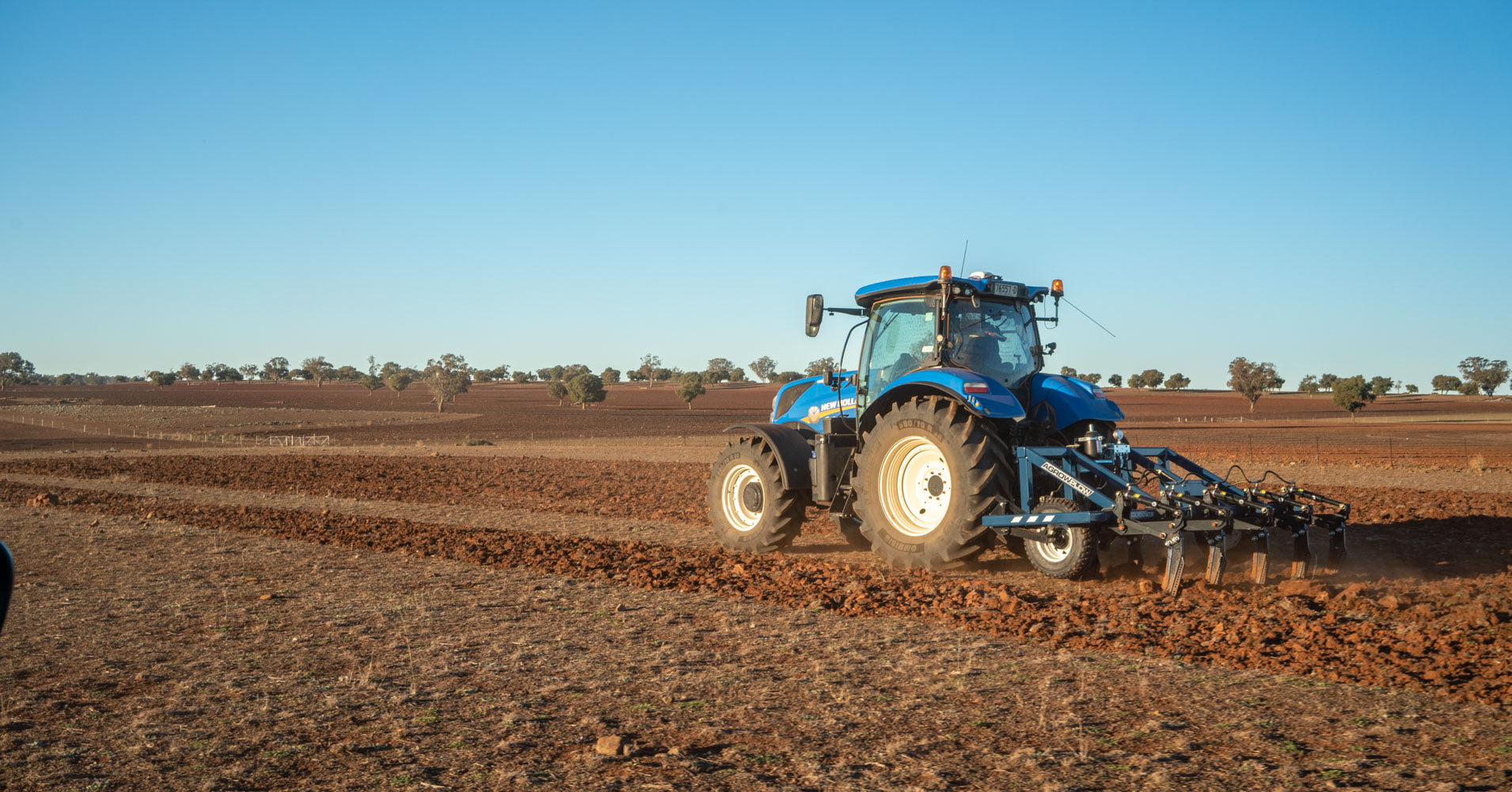

AP31 3PL mid sized plough deep ripping behind new holland tractor
HYBRID SHANK ASSEMBLY
400 mm

Working Depth

2.31 to 3.75 m

Working Widths

330 / 500 / 750mm

Shank Spacings

some plough Implements attach via the tractors three point linkage connection

Smart ripping.

The Agrowplow's AP31 features the #8-9 Hybrid Shank assembly, allowing deep ripping at depths of up to 400mm in either rigid or hydraulic breakout configurations. The #8-9 Hybrid Shank has our unique #9 blade and full-length shinguard for maximum durability.

THE BENEFITS OF AGROWPLOW
Strength

Superior performance in tough Australian conditions

Longer Lifespan

Keep going season after season.

Spare Parts

Comprehensive online spare parts store.

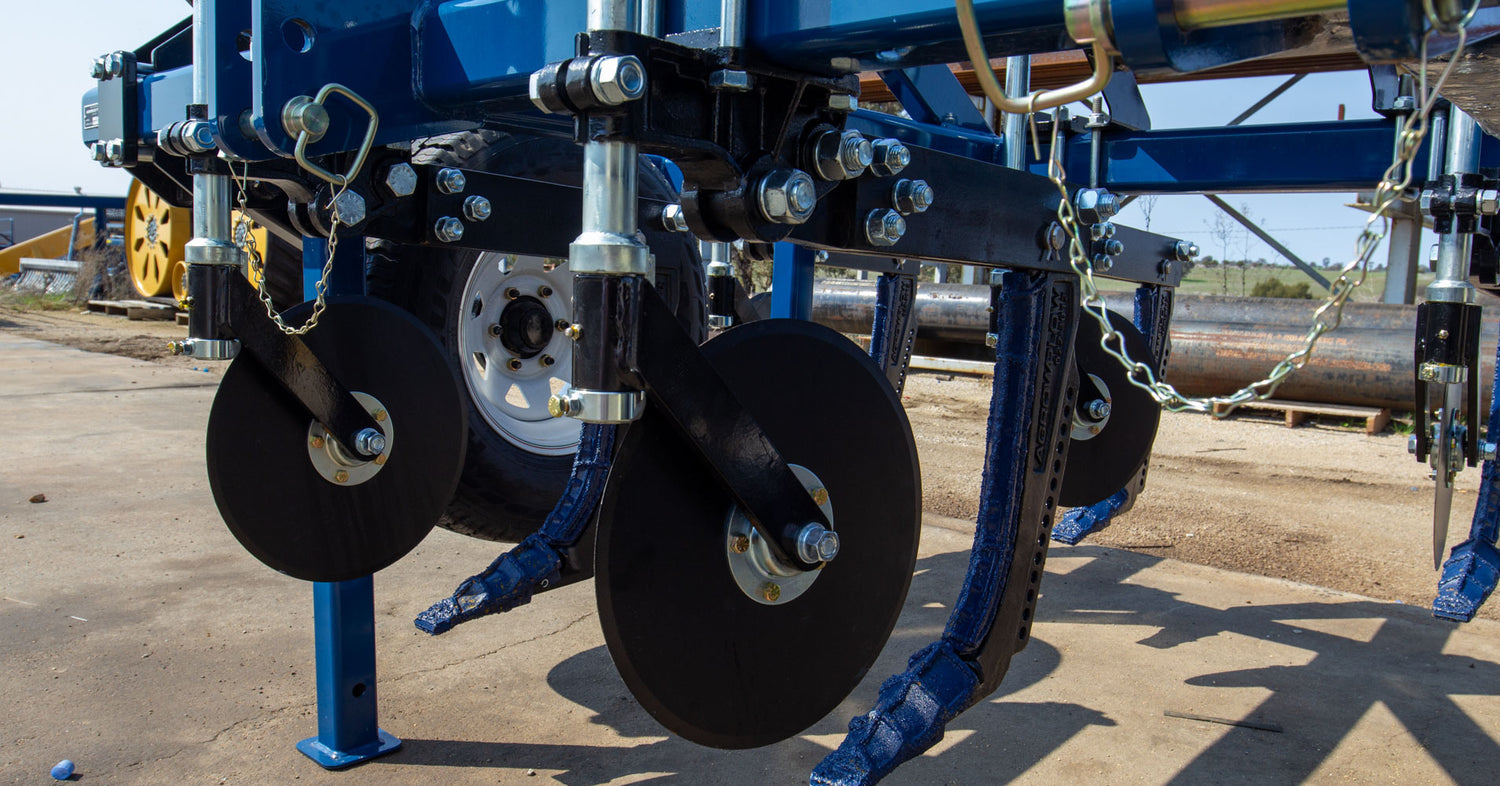

AP31 undercarriage featuring coulter assembly

Built to your needs.

The AP31 is available with 330, 500, or 750 mm shank spacings. It has a CAT3 three-point linkage hitch and a 100 x 100 x 9 mm RHS steel frame for long-lasting performance in Australia's tough conditions.

A rear tow hitch with optional hydraulic lines can fitted to the plough for towing trailing implements.

With the #8-9 hybrid shank assembly, the AP31 supports shank options such as coulters, fertiliser tubes, furrowers, inclusion plates, mulch blades and sweeps.

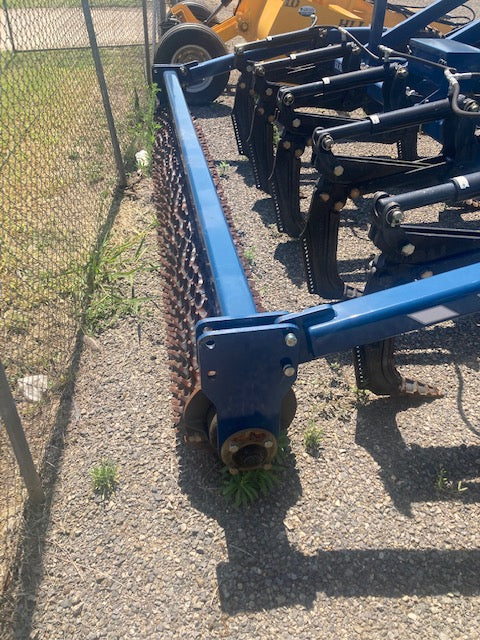

AP31 integrated mounted flexi-roller

Mounted Flexi-Roller

Designed to provide a superior seed bed finish in all soil conditions with its unique contour following ability, the optional mounted Flexi-Roller will shatter clods and break apart crusting following ripping.

Learn more about the Flexi-Roller

Get an Instant Quote

Build and customise the perfect Agrowplow machine for your farm with our easy online pricing and configuration tool.
Build and Configure

AP31 Specifications

AP31 7 x 330 6 x 500 5 x 750 9 x 330
Working Rows 7 6 5 9
Row Spacings 330 mm 500 mm 750 mm 330 mm
Working Width 2.31 m 3.00 m 3.75 m 2.97 m
Max. Working Depth 400 mm
Shank Style #8-9 Hybrid Assembly
Breakout Rigid 1,089 kg (2,400 lbs)
Hydraulic 907kg (2,000 lbs)
Drawbar Power 100-140 hp 90-130 hp 80-120 hp 135-180 hp
Frame 100 x 100 x 9 mm RHS
No. Toolbars / Spacing 2 / 1.15 m
Hydraulic Level Lift -
Linkage Type CAT2 three point linkage
Wheel Type 235/80 R15 AT
Transport Width 2.71 m 3.4 m
Weight 1.27 tonne 1.61 tonne
Shank Options Coulters
Furrowers
Inclusion plates
Mulch blades
Sweeps
Fertiliser tubes
Machine Options Flexi-Roller (Mounted)
Rear tow hitch
Hydraulic hose kit for RTH
Trailing Roller Options Flexi-Roller Mk2 & Mk2 HD
Flexi-Roller hydraulic lift kit

Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.

All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.

Trusted by Aussie Farmers

"Love the hydraulic breakout, saves a lot of time. Works very well in our different county types. Made a big difference to our cropping country already with much healthier crops. 10/10"

Neil Pringle, Mullion Creek NSW
AP31 | #8-9 Hydraulic Shanks | 6 x 500 mm spacings

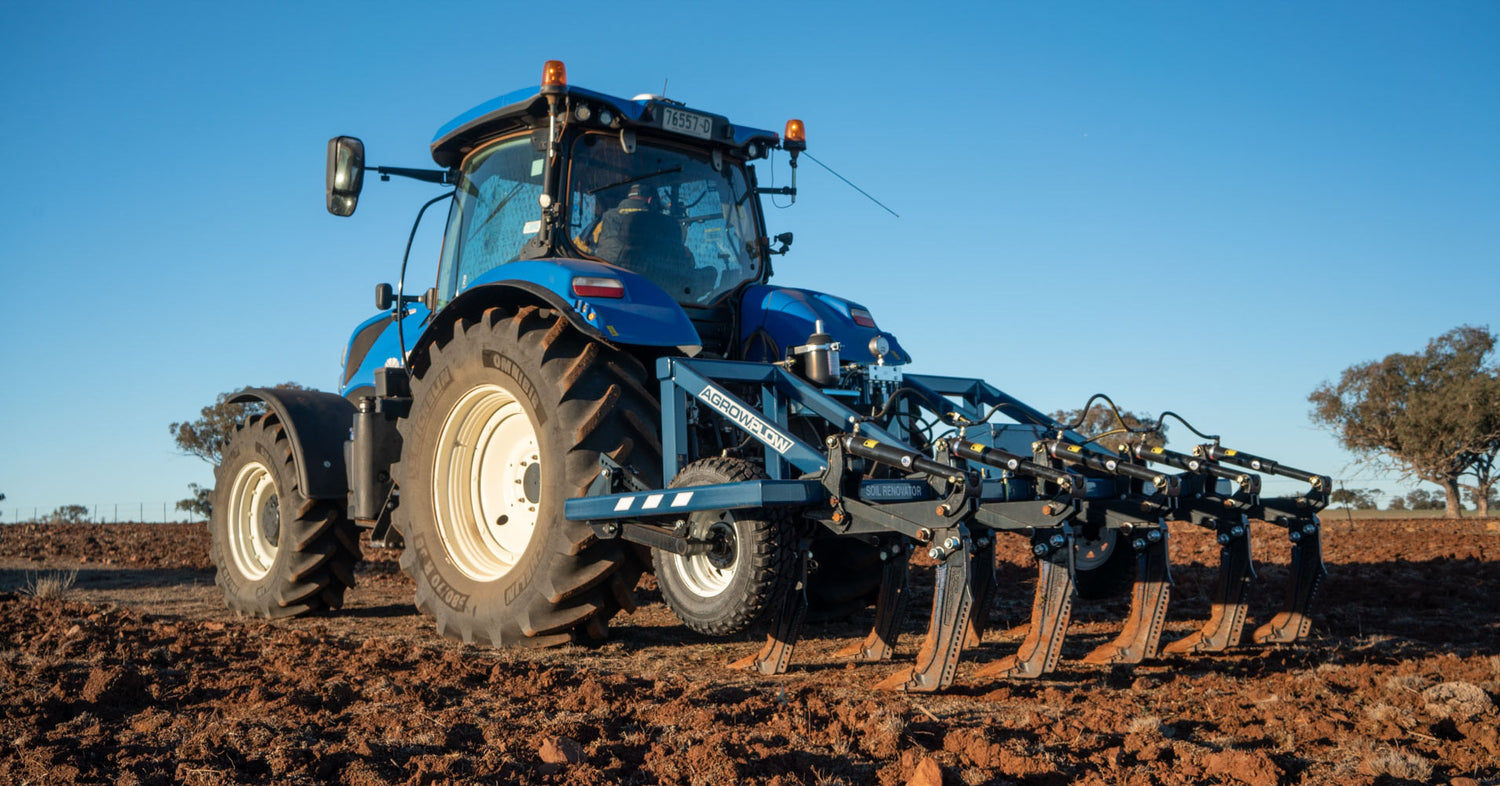

AP31 deep ripper plough
