AP82 broadacre deep ripper hydraulic with wings folded

AP82 Agrowplow

The smarter deep ripper for broadacre enterprises.

Boost crop yields hectare after hectare with efficient hardpan shattering up to 600mm deep, allowing deep moisture retention and healthier plant root development.

View Specifications
AP81 deep ripper ploughing in field with #9 hydraulic shanks
450 / 600 mm

Working Depths

9.0 / 12.0 m

Working Widths

522 / 529 mm

Shank Spacings

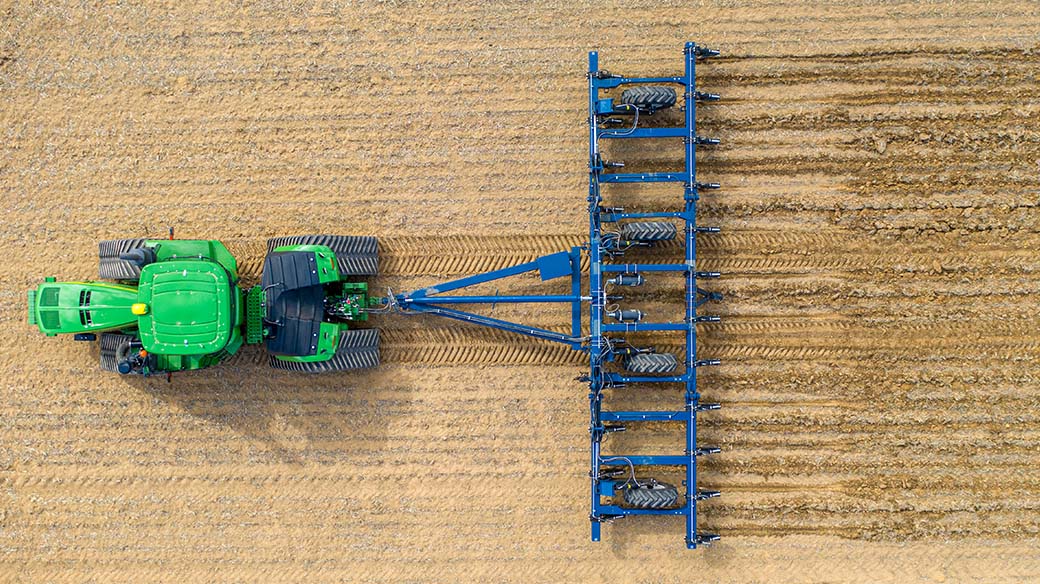

Aerial view of he AP81 Agrowplow behind John Deere tractor

Clever configuration.

Constructed from a heavy-duty, fully-welded frame, the AP82 holds either 17 or 23 shanks across a pair of 200x200x9 mm RHS steel toolbars, offering ripping widths of 9.0 or 12.0 metres wide. The AP82 offers heavy trash clearance and a robust design that handles the stresses of heavy use.

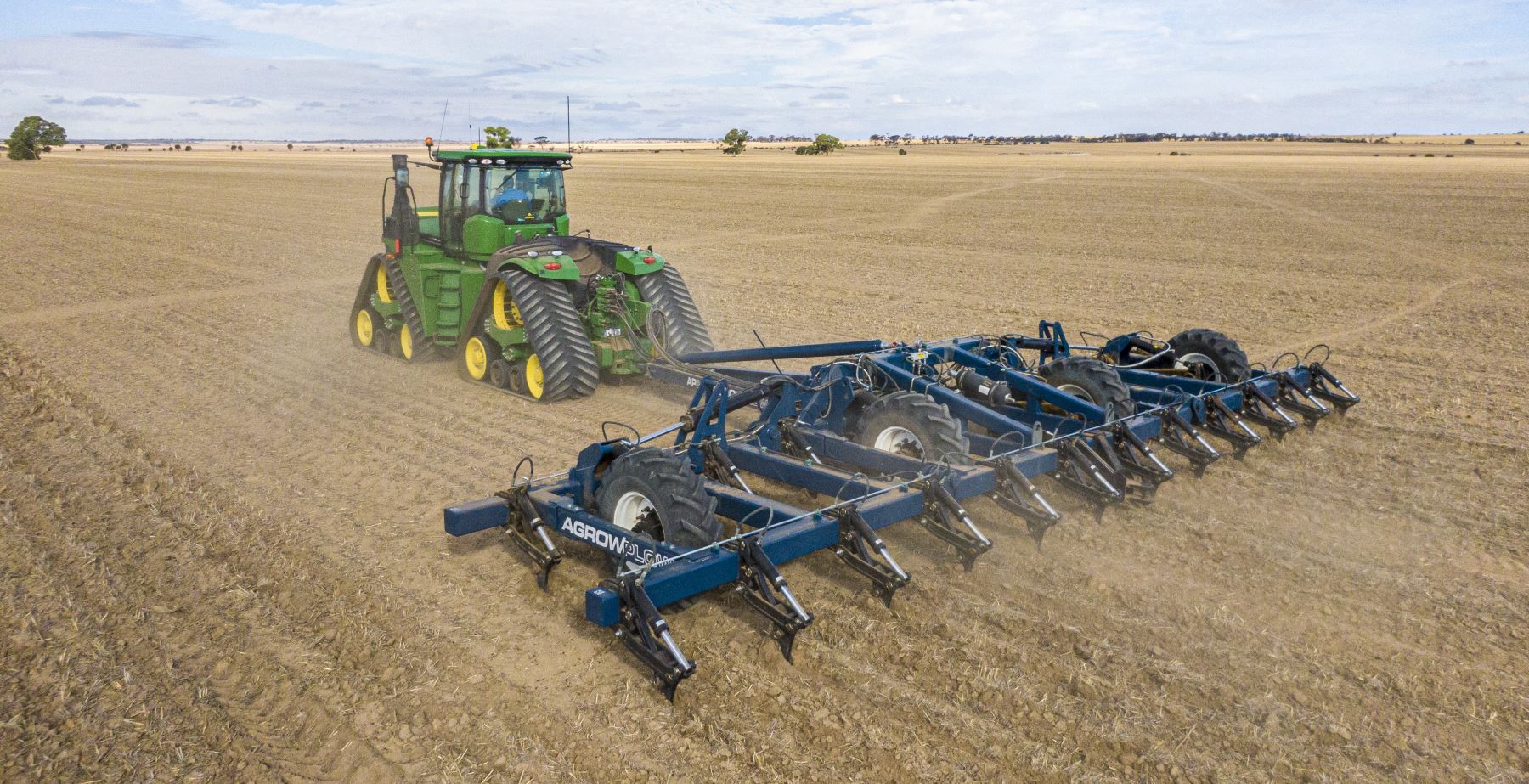

Agrowplow AP81 deep ripper with hydraulic #9 shanks in the field

Smarter ripping.

The AP82 supports either rigid or hydraulic breakouts, all based on Agrowplow's renowned #9 Shank Assembly. The design features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce tractor drawbar requirements.

Full-length shinguards and an assortment of blades offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

AP81 12m deep ripper fitted with sweeps on the shanks

Hydraulic Level Lift

The AP82 comes standard with a hydraulic level adjust lift that enabling full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

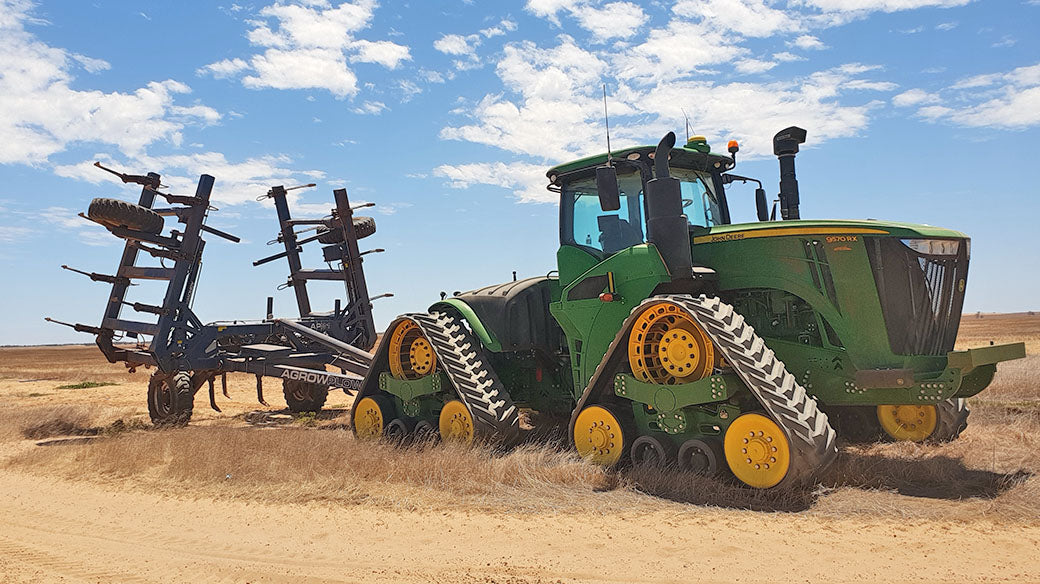

AP81 Wing Fold design

Centre-Wing Fold

The plough features three sections, with a 10° down and 20° up section float. This allows the plough to follow the natural contours of your paddock while ensuring your soil is ripped to a consistent depth.

Transport is made easy with the over-centre wing fold, with locking pins securing the sections when in transit.

Agrowplow Ap81 pulled by tracked tractor

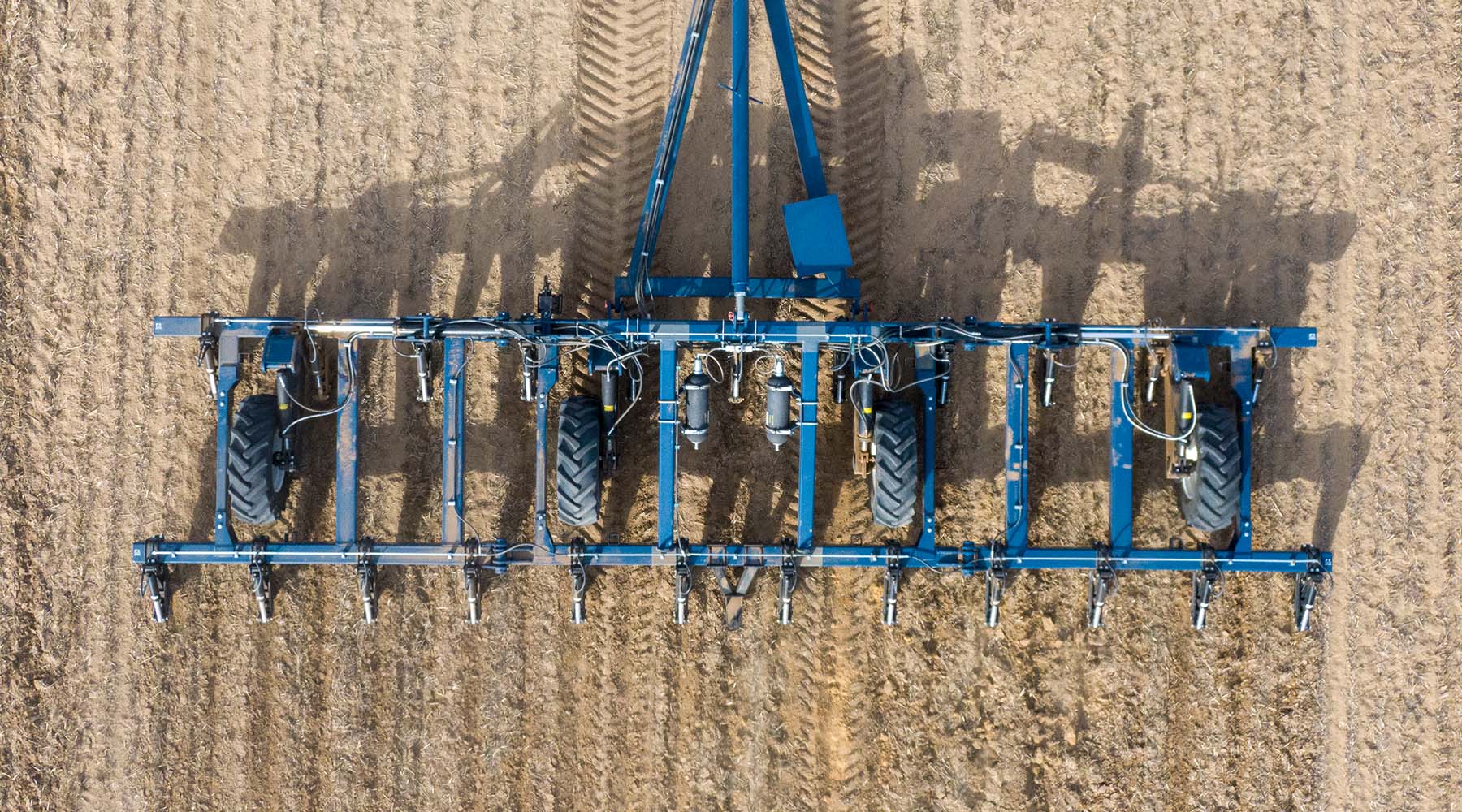

Aerial view of Agrowplow AP81 ripper
AP81 with 23 hydraulic shanks

Superior performance in tough Australian conditions.

Longer Lifespan

Keep going season after season.

Spare Parts

Comprehensive online spare parts store.

AP81 with 23 hydraulic shanks

Built to your needs.

Improve production outcomes with a range of options for your AP82 plough. Longer shanks can be fitted onto the ripper for working depths up to 600 mm in soft soil operations.

Compatible shank options include:

Add a rear tow hitch with or without hydraulic lines to host additional trailing implements.

Get an Instant Quote

Build and customise the perfect Agrowplow machine for your farm with our easy online pricing and configuration tool.
Build and Configure

AP82 Specifications

AP82 17 x 529 23 x 522
Working Rows 17 23
Row Spacings 529 mm 522 mm
Working Width 9.0 m 12.0 m
Max. Working Depth 450 mm (600 mm option)
Shank Style #9 Shank Assembly
Breakout Rigid 6,214 kg (13,700 lbs) (600 mm)
Hydraulic 1,846 kg (4,070 lbs)
Drawbar Power 340-510 hp 460-690 hp
Frame 200 x 200 x 9 mm RHS
No. Toolbars / Spacing 2 / 2,135 mm
Hydraulic Level Lift Yes
Sections & Float 3 sections / 10° down and 20° up wing ground following
Wing Lock Over centre wing fold with locking pins
Linkage Type Trailing with 2" or 2 3/4" drawbar pin
Wheel Type 15.5/80-24 163A8/169A6 grip-star
CTF Spacings -
Transport Width Folded 6.85 m 6.80 m
Unfolded 9.82 m 11.9 m
(hyd. & no options)
9,400 kg 9,900 kg
Shank Options Furrowers
Inclusion plates
Mulch blades
Fertiliser tubes
600 mm shanks (soft soil conditions only)
Machine Options Rear tow hitch
Hydraulic hose kit for RTH
Trailing Roller Options -

Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.

All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.
