AD730 Agrowdrill on white background

AD730 AGROWDRILL

We didn't just build a seed drill to be stronger, we also built a machine that's more productive.

Designed alongside farmers like you and packed with a long list of innovative features, we built a seed drill to help you be more efficient in the paddock, featuring a noticeably larger capacity, high flotation tyres, and new heavy duty spring release tynes.

View Specifications

AD730 Agrowdrill is a large capacity broadacre seed drill up to 5m
AD730 28 row 175mm spacing direct drill with 401 disc undercarriage
UNDERCARRIAGES

552 HD Spring Tyne

251 Spring Tyne

401 Double Disc

225 or 175 mm

Row Spacings

3.5 to 4.95 m

Working Width

Up to 2x 1080 L

Dual Seed/Fertiliser Capacity

AD730 Agrowdrill is a large capacity broadacre seed drill up to 5m

Built for efficiency.

The large dual-hopper capacity of up to 2444 L minimises downtime reloading and can seed and fertilise in a single pass. The AD730 broadacre seed drill has the power and efficiency for the biggest jobs.

A small seed box can be mounted directly onto the drill for sowing grasses and other small pasture seeds, with capacities of 38 or 60 L per metre.

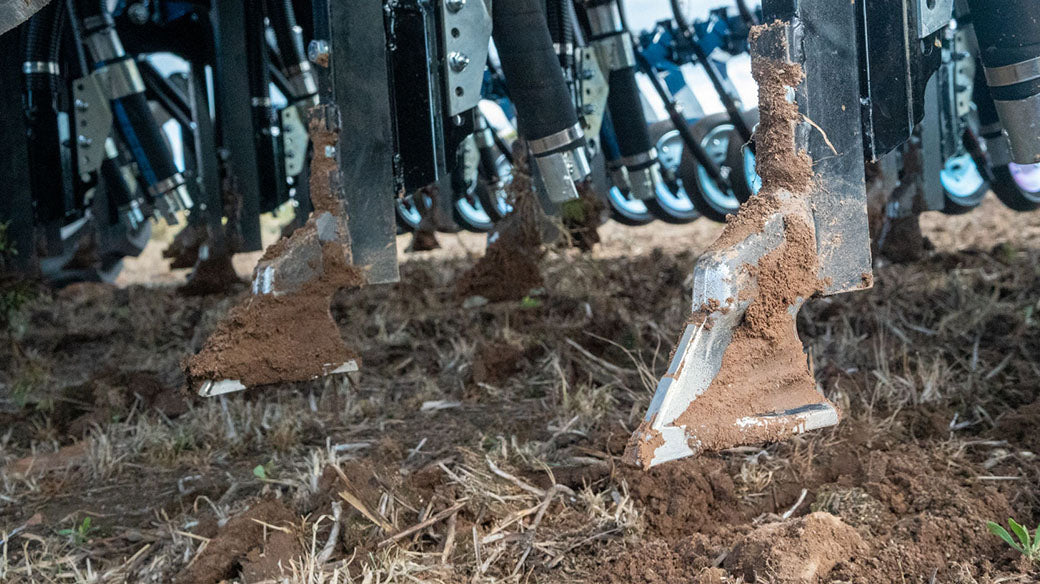

The AD730 tynes are suited to zero-till operations

Heavy-duty tyne or disc undercarriage options.

The 552 heavy-duty spring tyne assembly combines high-breakouts and excellent residual handling with a narrow point design. Alternatively, outfit your AD730 with the 251 spring tyne for an affordable, reliable opener built on our trusted baker boot point.

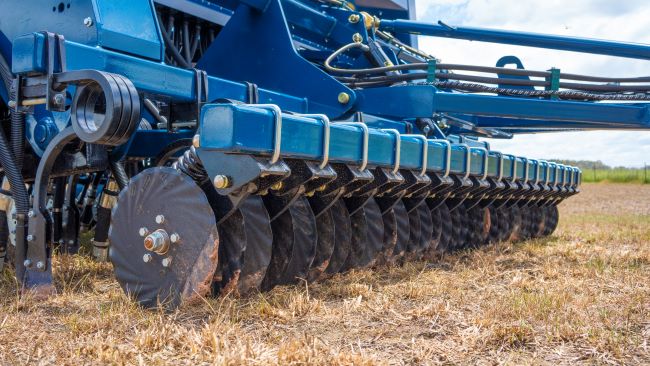

With our 401 Double Disc undercarriage, experience the ultimate combination of performance in high-trash or rocky conditions.

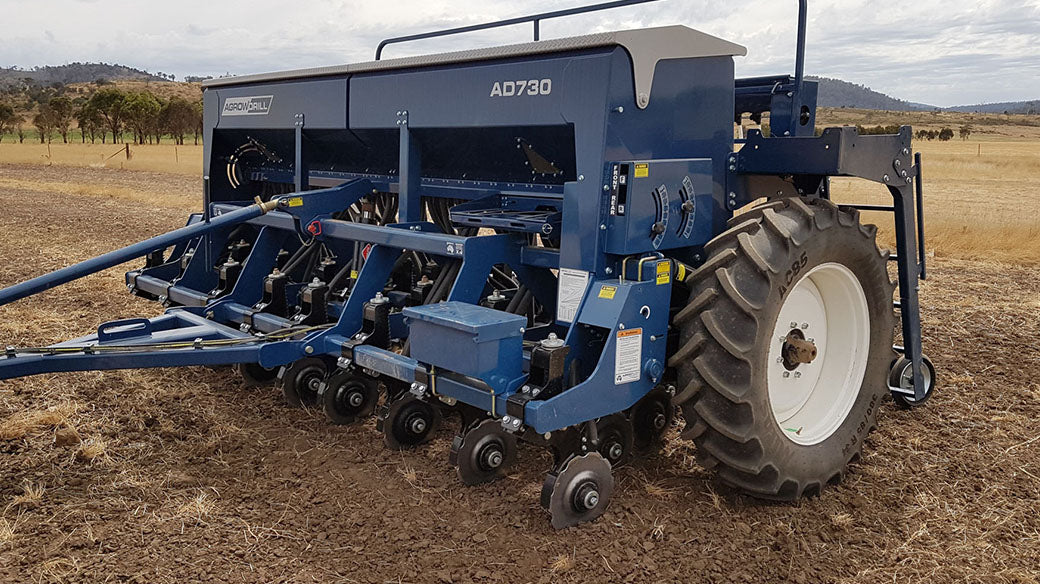

AD730 Agrowdrill fitted with disc undercarriage and presswheels

Accurate seeding and metering.

Double-fluted rollers, easily adjusted gates, roller restrictors, and an infinitely variable gearbox makes it easy to sow a wide variety of cereals, grasses, and even large seeds and beans. Easily fine-tune your calibration to allow high rate of fertiliser and low seed rates to suit your farm.

The AD730 includes a hectare meter as standard for easy monitoring of seed distribution.

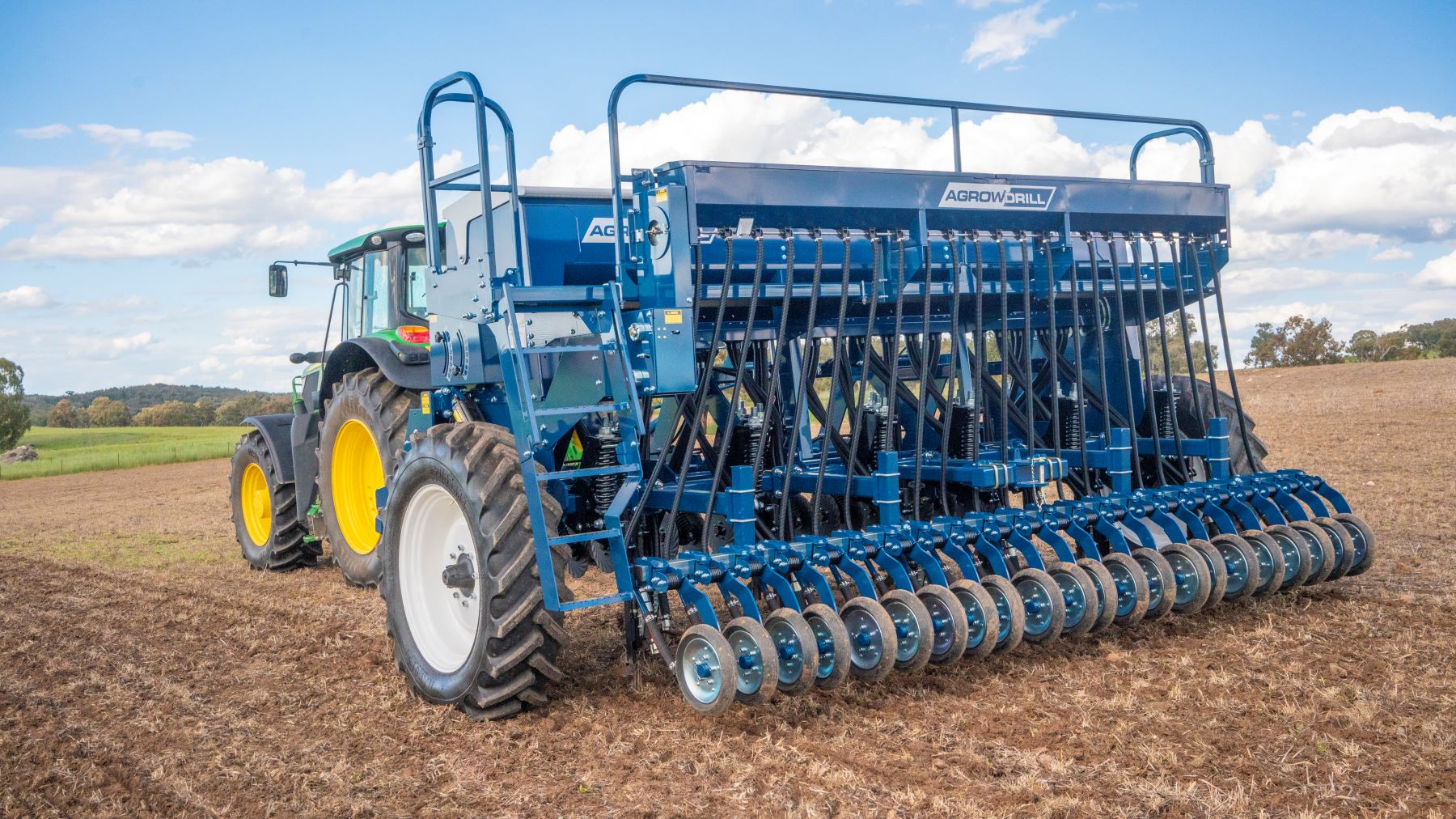

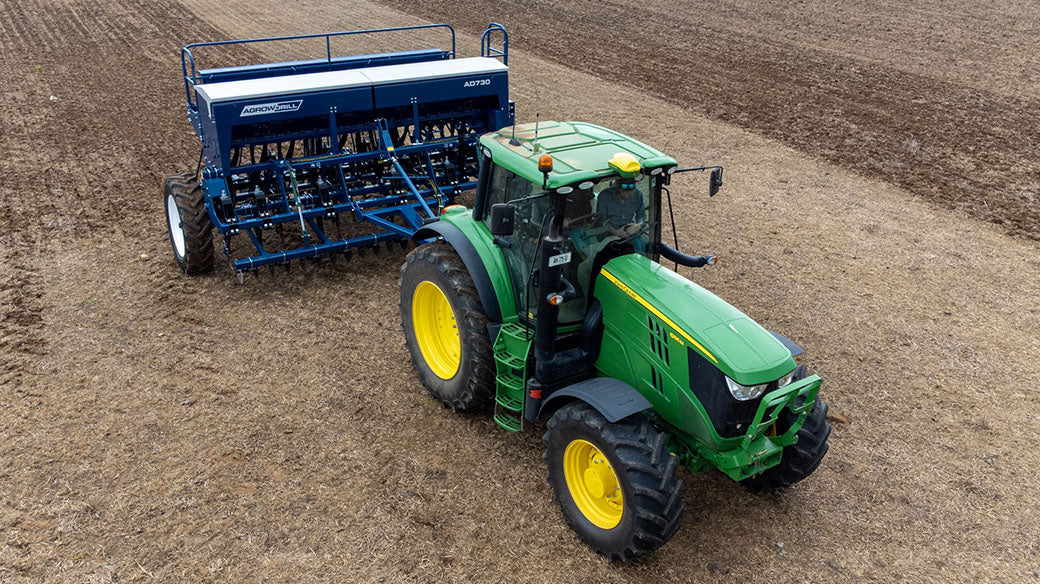

AD730 Agrowdrill behind John Deere tractor

Sowing made easy.

Sow almost anything at any rate with an infinitely variable gearbox and optional bean roller. The AD730 also incorporates a robust and simple dog clutch system that disengages when lifted and engages when lowered - one less worry when turning your seed drill around when sowing.

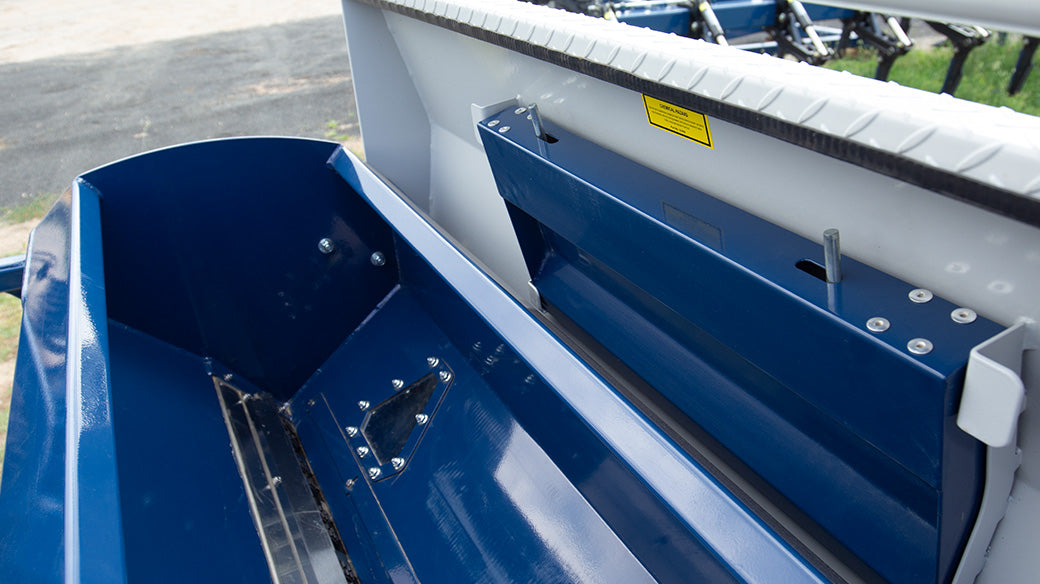

AD083 Hopper with lid open

Efficient cleaning.

Save time and minimise corrosion with an Agrowdrill.

Simply set the lever to the box cleaning setting to open the gates and allow remnants to fall through. Cleaning is quick and simple, and protects the drill from premature wear and corrosion.

The weather-proofed, powder-coated lid and box provide a long-lasting, high-quality finish.

Superior Features as Standard

We've put the hard work in to bring you the toughest seed drill around. The AD730 stands out from the pack with its advanced Agrowdrill features.

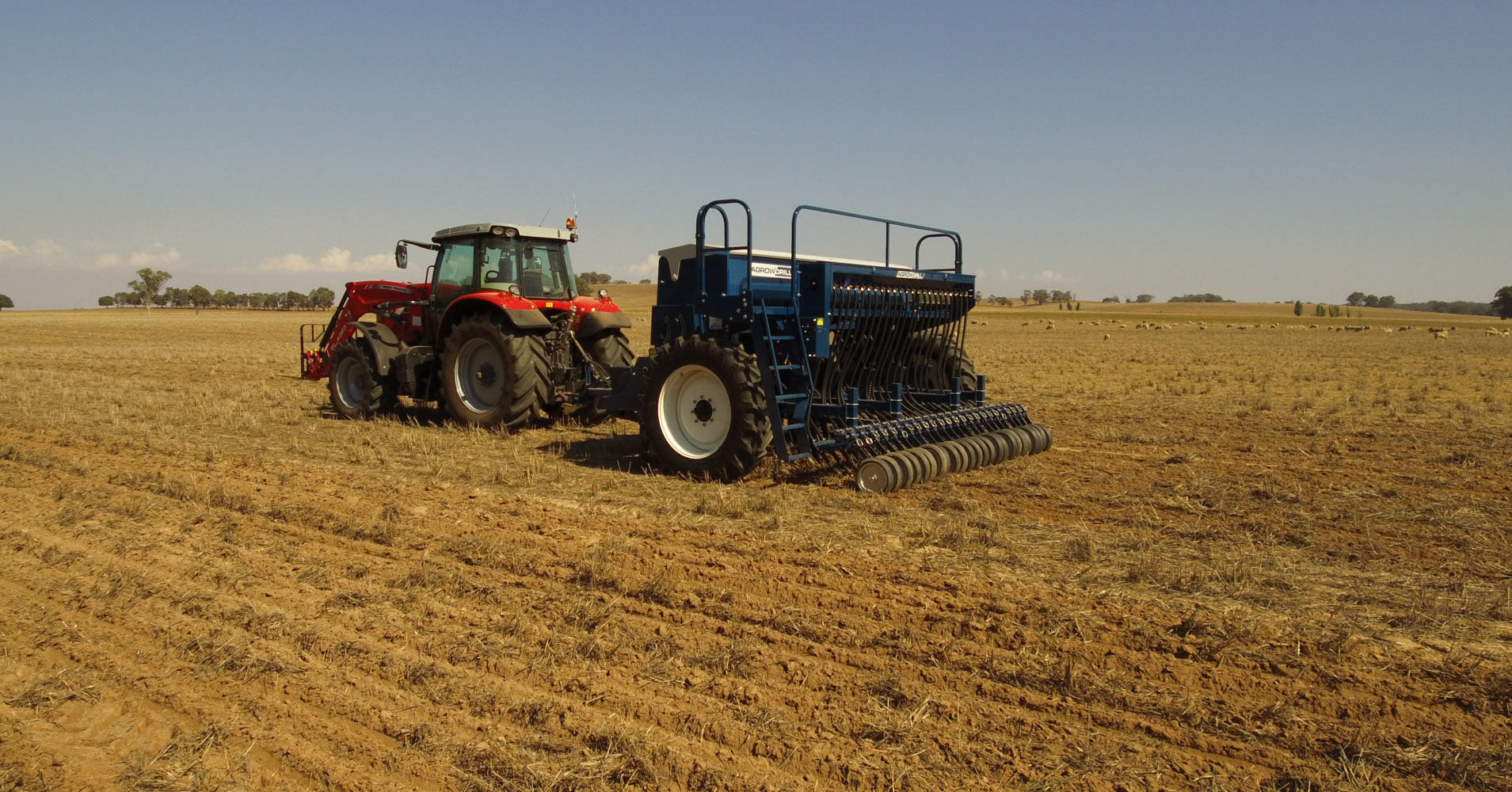

AD730 seed drill with rolling hills and paddock
THE BENEFITS OF EVERY AGROWDRILL

SUPERIOR FEATURES

Strength

The AD730's 100x100x9 mm RHS steel, fully welded frame has the strength to outlast and outperform in any condition.

Longer Lifespan

Powder-coated toolbars and seed boxes. Stainless steel valleys and calibration trays protect from corrosion.

Spare Parts

Shop spare parts and accessories for your machine with our comprehensive online store.

Built to your needs.

CUSTOMISE YOUR AD730 SEED DRILL
with our range of machine options, rollers, and accessories.

Machine Options

Increase the versatility of your AD730 with a range of options including presswheels, coulters, double-chuting, road kit, harrows, deep small seeds box, bean rollers, and rear-tow hitch.

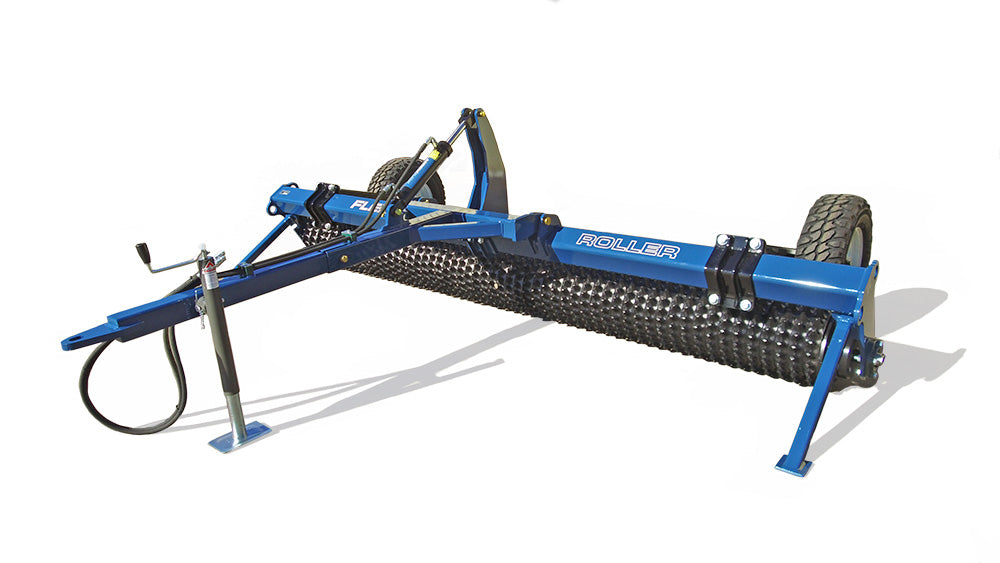

Flexi-Roller

Independent roller rings allow the Flexi-Roller to follow the contours of the earth, providing maximum ground contact and ensuring the best possible seedbed finish.

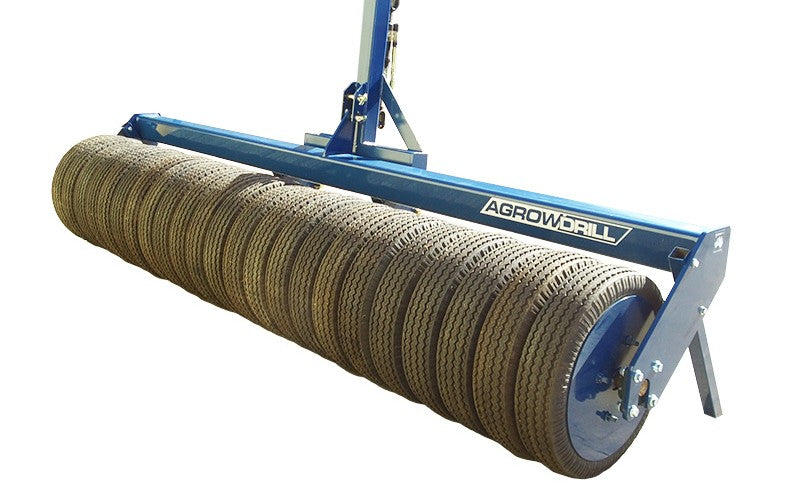

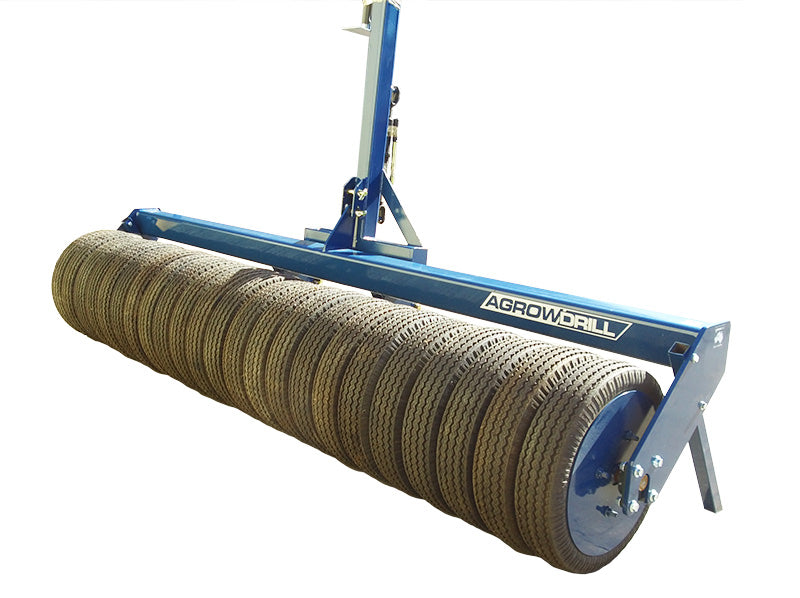

Rubber Tyre Roller

The gang of solid rubber tyres press firmly into the ground following seeding with enough weight to distribute the gentle compaction evenly across flat paddocks.

Get an Instant Quote

Build and customise the perfect Agrowdrill machine for your farm with our easy online pricing and configuration tool.
Build and Configure

AD730 Specifications

Model 18 x 225 22 x 225 20 x 175 24 x 175 28 x 175
Sowing Rows 18 22 20 24 28
Row Spacings 225 mm 225 mm 175 mm 175 mm 175 mm
Working Width 4.05 m 4.95 m 3.50 m 4.20 m 4.90 m
Transport Width 4.87 m 5.75 m 4.35 m 5.05 m 5.75 m
Undercarriage Options 552 HD Spring Tyne: 750 mm clearance | 250 kg (550 lbs) breakout
251 Spring Tyne: 620 mm clearance | 114 kg (251 lbs) breakout
401 Double Disc Unit: 620 mm clearance | 205 kg (2010 N) downforce
Hopper Capacity Front 880L 1080L 775L 920L 1080L
Rear 880L 1080L 775L 920L 1080L
Frame 100 x 100 x 9 mm RHS
No. Toolbars / Spacing 4 / 550 mm
Tyre Size 380/85 R24
Linkage Type Trailing with hydraulic lift
Weight 3.8 t 4.4 t 3.7 t 4.2 t 4.7 t
Drawbar Power 120-150 hp 130-180 hp 120-150 hp 130-160 hp 150-200 hp
Machine Options Coulters
Presswheels
Harrows
Bean rollers
Double chuting
Road transport kit
Small seed box
Deep small seed box
Small seeds flexi-chute bar
Presswheel small seed tubes
Rear tow hitch
RTH hydraulic kit
Trailing Roller Options Flexi-Roller w/ or w/o hydraulic lift kit
Rubber Tyre Roller
Specifications may change without notice at any time.
551 tyne Agrowdill undercarriage on AD730 seed drill

Take the next step.

Contact our sales team on 0429 393 350 to discuss the right Agrowdrill machine for you, or speak to your local Agrowplow dealer.
Contact Us Find a Dealer

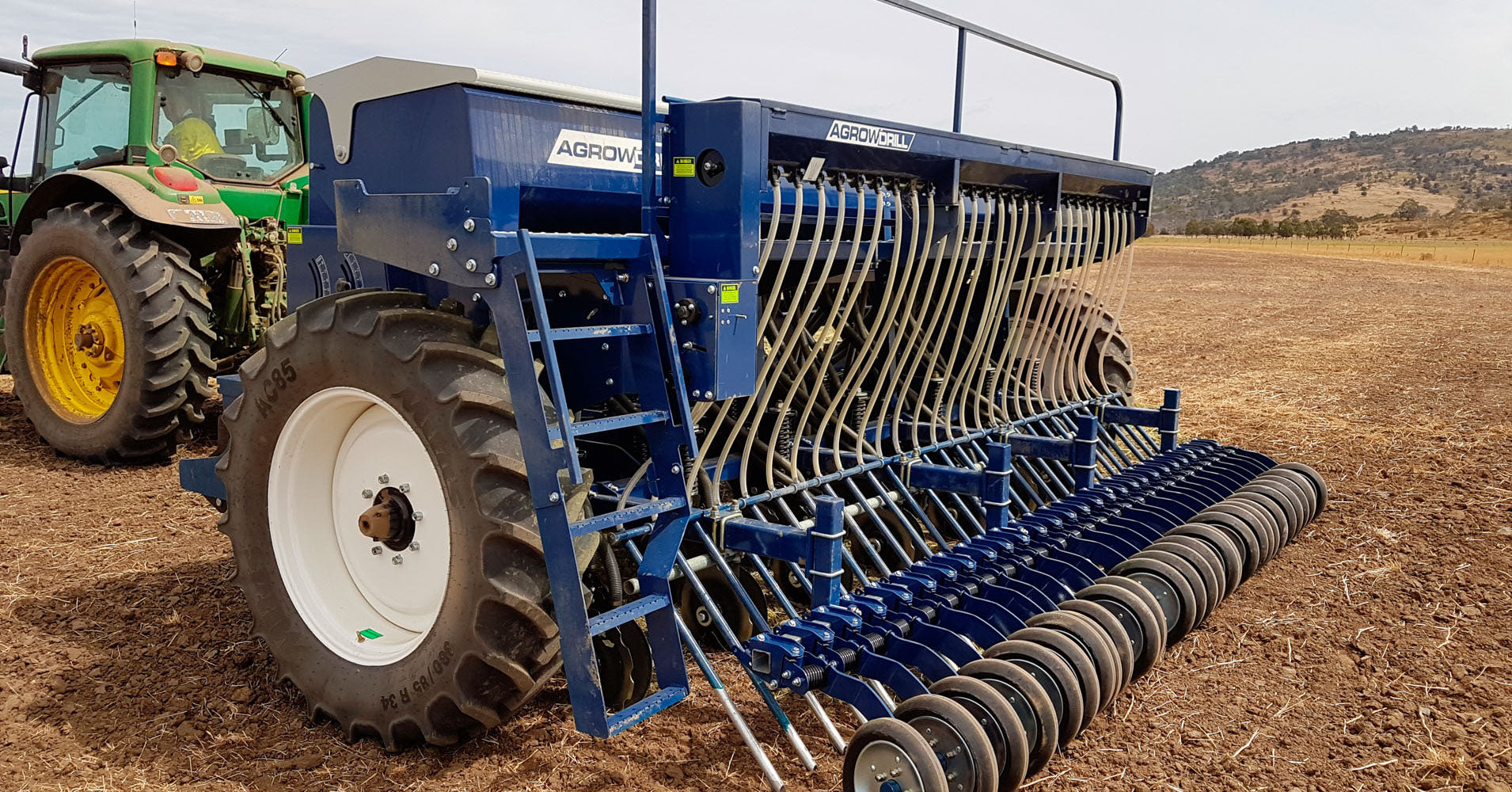

Agrowdrill AD730 direct drill seeder with coulters, presswheels, small seed box and rear tow hitch
