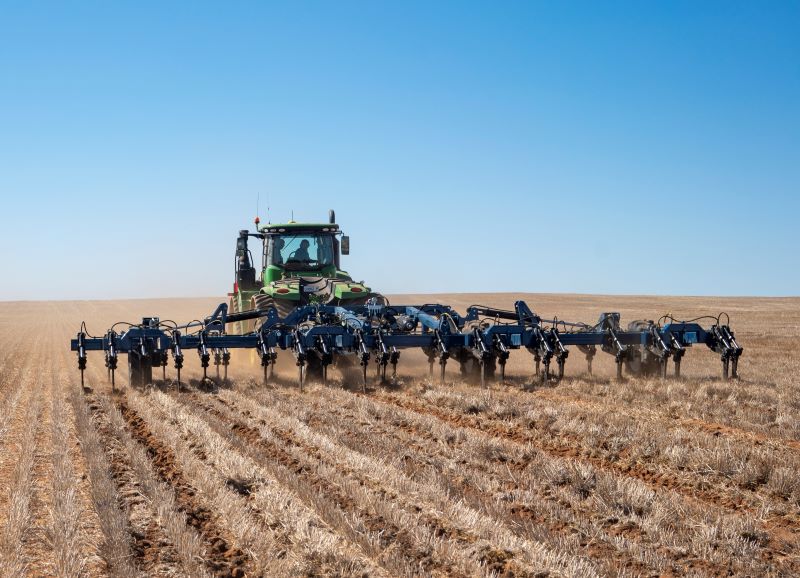

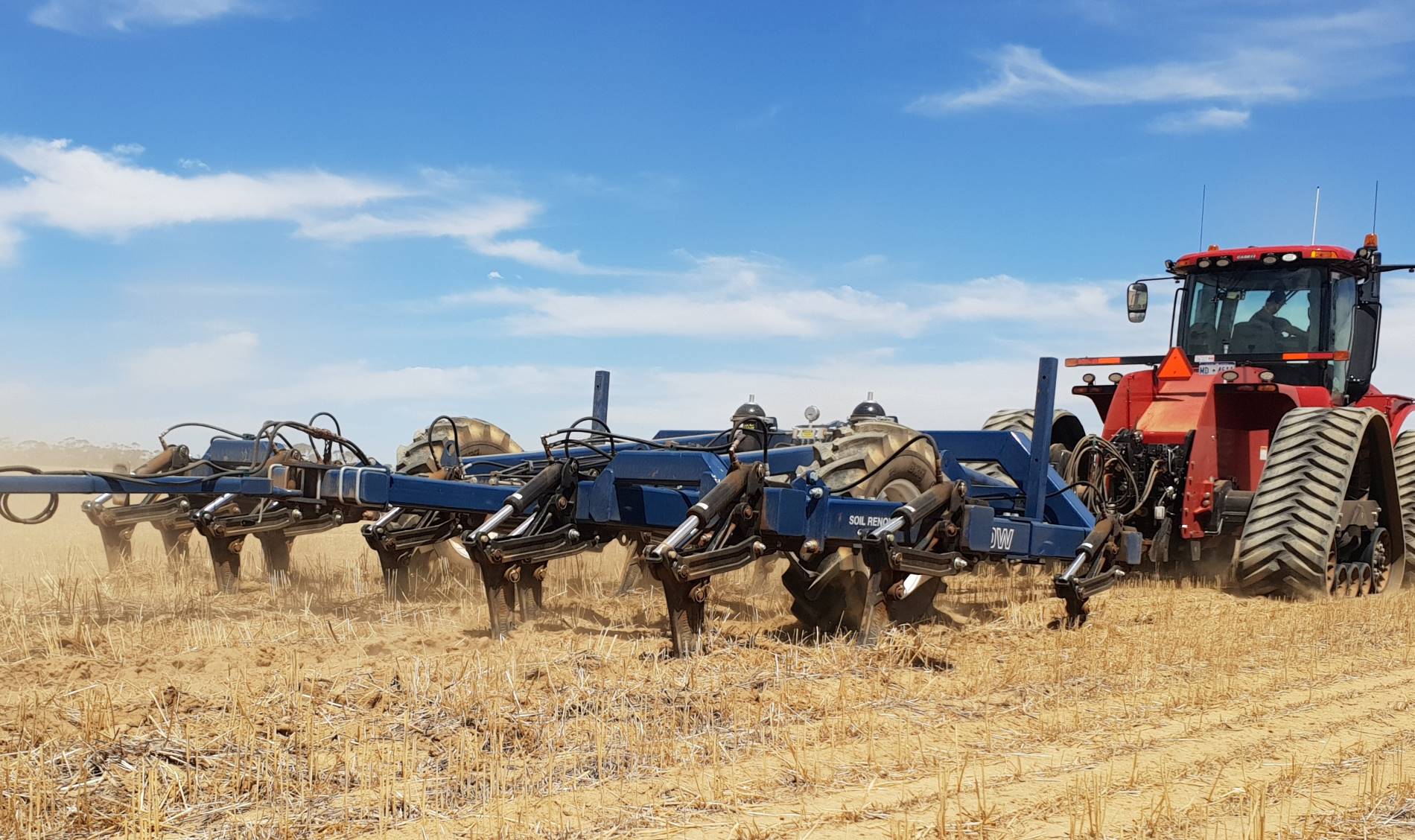

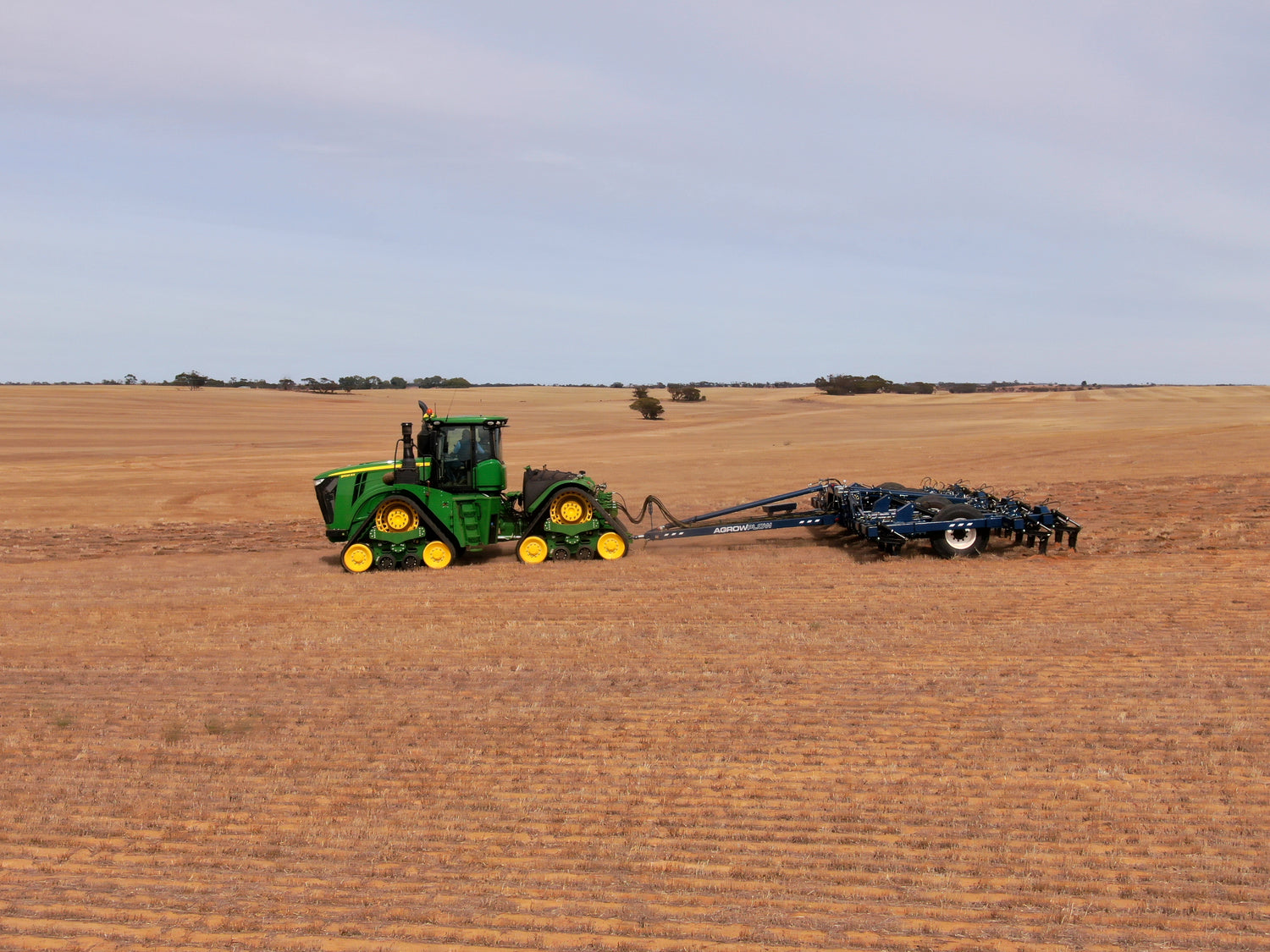

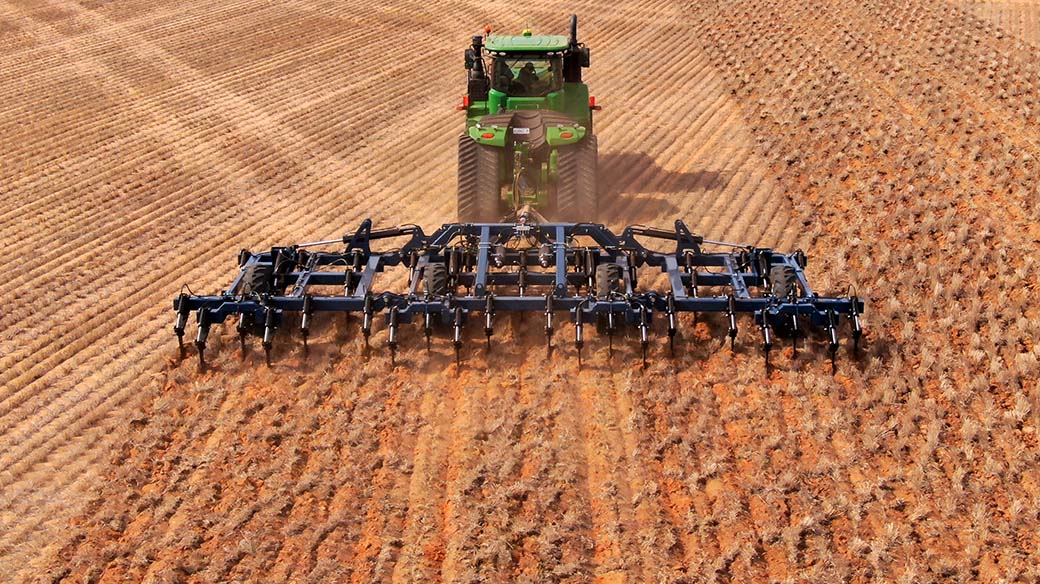

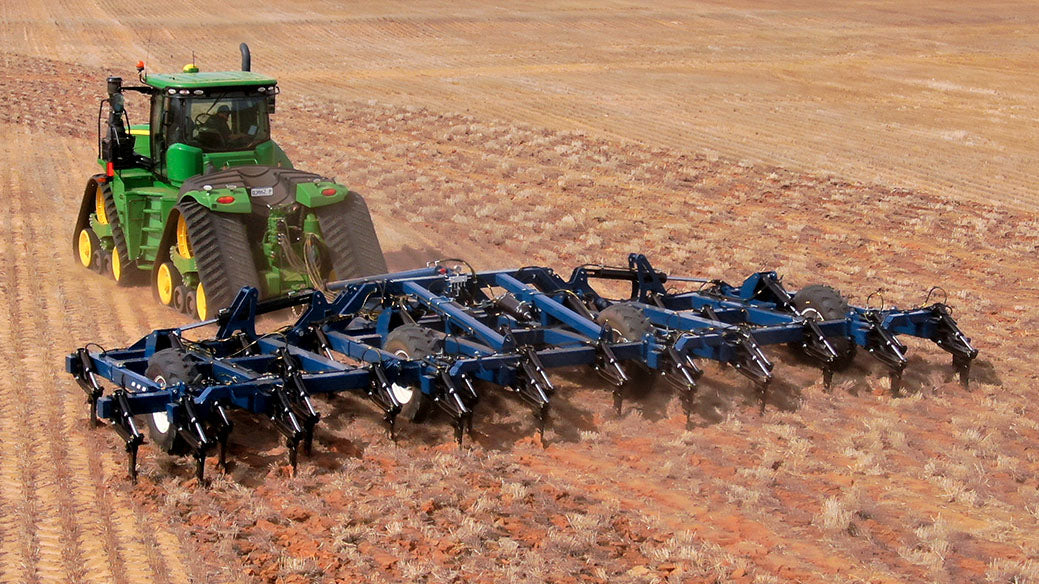

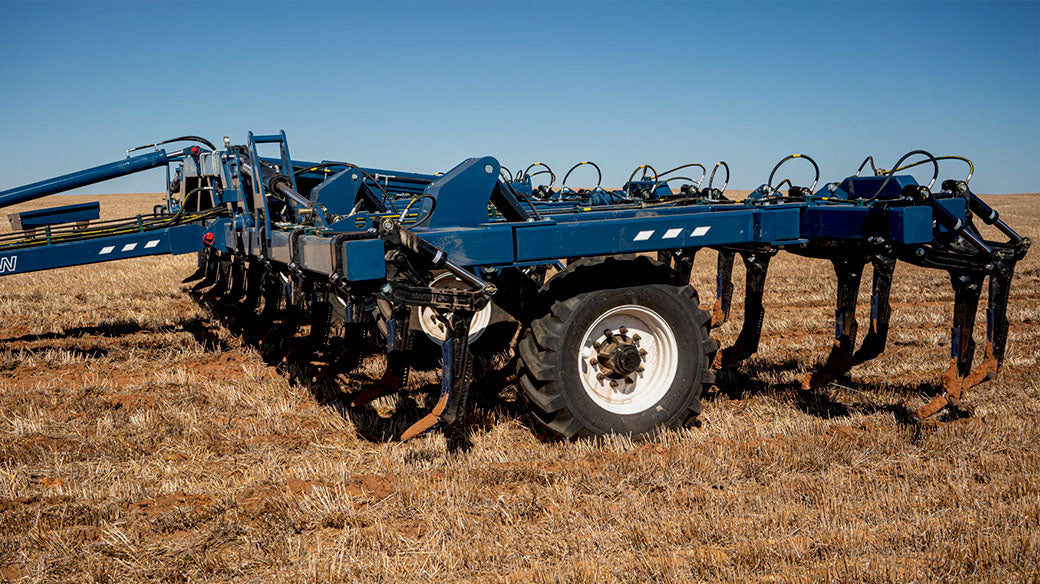

Agrowplow AP91

Large broadacre deep ripper with leading trailing shanks

LEADING / TRAILING SHANKS.

The efficient deep ripper for broadacre enterprises. Save fuel and time input costs by up to 18%.

The AP91 is designed to efficiently reach deep subsurface compaction to 600 mm with improved towing capabilities and reduced ripping costs with its trailing/leading tyne configurations.

View Specifications
SHANK ASSEMBLY

Leading / Trailing

Up to 600 mm

Working Depth

9.0 / 12.0 m

Working Widths

529 / 522 mm

Shank Spacings

Agrowplow Range - AP91 Plough broadacre

Simpler. Stronger. Smarter.

Soil care and innovation has been the driving force behind the AP91 broadacre plough, developed to make deep ripping for the farmer simpler, stronger and smarter.

Available with 3 m wheel centres in 9 and 12 m working widths built on a fully-welded 200x200x9 mm RHS frame, the AP91 is the ideal choice for efficient broadacre ripping.

Efficient Configuration

Efficient Configuration

The leading/trailing tyne design consists of a single row of shallow leading tynes working at depths of up to 450mm in-line and ahead of the trailing shanks, set to penetrate up to 600mm. This dual-action configuration reduces the draft requirements for the ripper, resulting in increased towing ability and has been proven to reduce fuel and time costs by up to 18%.

Smart Ripping

Smart Ripping

The Agrowplow AP91 is available in 17 or 23-row configurations, all based on Agrowplow's renowned #9 Shank Assembly. The #9 shank features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce drawbar requirements. Full-length shinguards and Agrowplow's #9 blade offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

Folding Wing Design

Folding Wing Design

The plough also features 3 sections with 10° down and 20° up section float. This allows the plough to follow the natural contours of your paddock while ensuring your soil is ripped to a consistent depth. Hydraulically-driven wings fold up to bring the width under 7 m to reduce escort requirements when transporting the machine.

Hydraulic Level Lift

Hydraulic Level Lift

A hydraulic level lift is included as standard, allowing full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

THE BENEFITS OF AGROWPLOW
Strength

Superior performance in tough Australian conditions.

Longer Lifespan

Keep going season after season.

Spare Parts

Comprehensive online spare parts store.

Built to your needs.

Built to your needs.

Improve your production outcome with a range of shank options for your AP91, including:

Add a rear tow hitch with or without hydraulic lines to host additional trailing implements.

Get an Instant Quote

Build and customise the perfect Agrowplow machine for your farm with our easy online pricing and configuration tool.
Build and Configure

AP91 Specifications

AP91 17 x 529 23 x 522
Working Rows 17 (26 shanks) 23 (34 shanks)
Row Spacings 529 mm 522 mm
Working Width 9.0 m 12.0 m
Max. Working Depth 600 mm
Shank Style #9 Shank Assembly
Breakout Rigid Lead: 4,790 kg (10,560 lbs) / Trail: 6,214 kg (13,700 lbs)
Hydraulic Lead: 1,846 kg (4,070 lbs) / Trail: 1,597 kg (3,520 lbs)
Drawbar Power 400+ hp 500+ hp
Frame 200 x 200 x 9 mm RHS
No. Toolbars / Spacing 4 / 1.35, 1.5 m 4 / 1.35, 1.6 m
Hydraulic Level Lift Yes
Sections & Float 3 sections / 10° down and 20° up wing ground following
Wing Lock Over centre wing fold with locking pins
Linkage Type Trailing with 2" or 2 3/4" drawbar pin
Wheel Type 15.5/80-24 163A8/169A6 grip-star
CTF Spacings -
Transport Width Folded 6.85 m 6.80 m
Unfolded 9.25 m 11.90 m
Weight
(hyd. & no options)
6,900 kg 9,500 kg
Shank Options Furrowers
Inclusion plates
Mulch blades
Sweeps
Fertiliser tubes
Machine Options Rear tow hitch
Hydraulic hose kit for RTH
Trailing Roller Options -

Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.

All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.
