Agrowplow AP92

AP92 4.5m plough with rigid shanks

LEADING / TRAILING SHANKS.

Save fuel and time input costs by up to 18%. Rip to 600mm for smaller working widths.

The AP92 is designed to efficiently reach deep subsurface compaction with its leading/trailing shank design. Perfect for mixed or specialised farms.

View Specifications
SHANK ASSEMBLY

Leading-Trailing

Up to 600 mm

Working Depth

3.5 / 4.5 / 6.05 m

Working Widths

500 / 550 mm

Shank Spacing

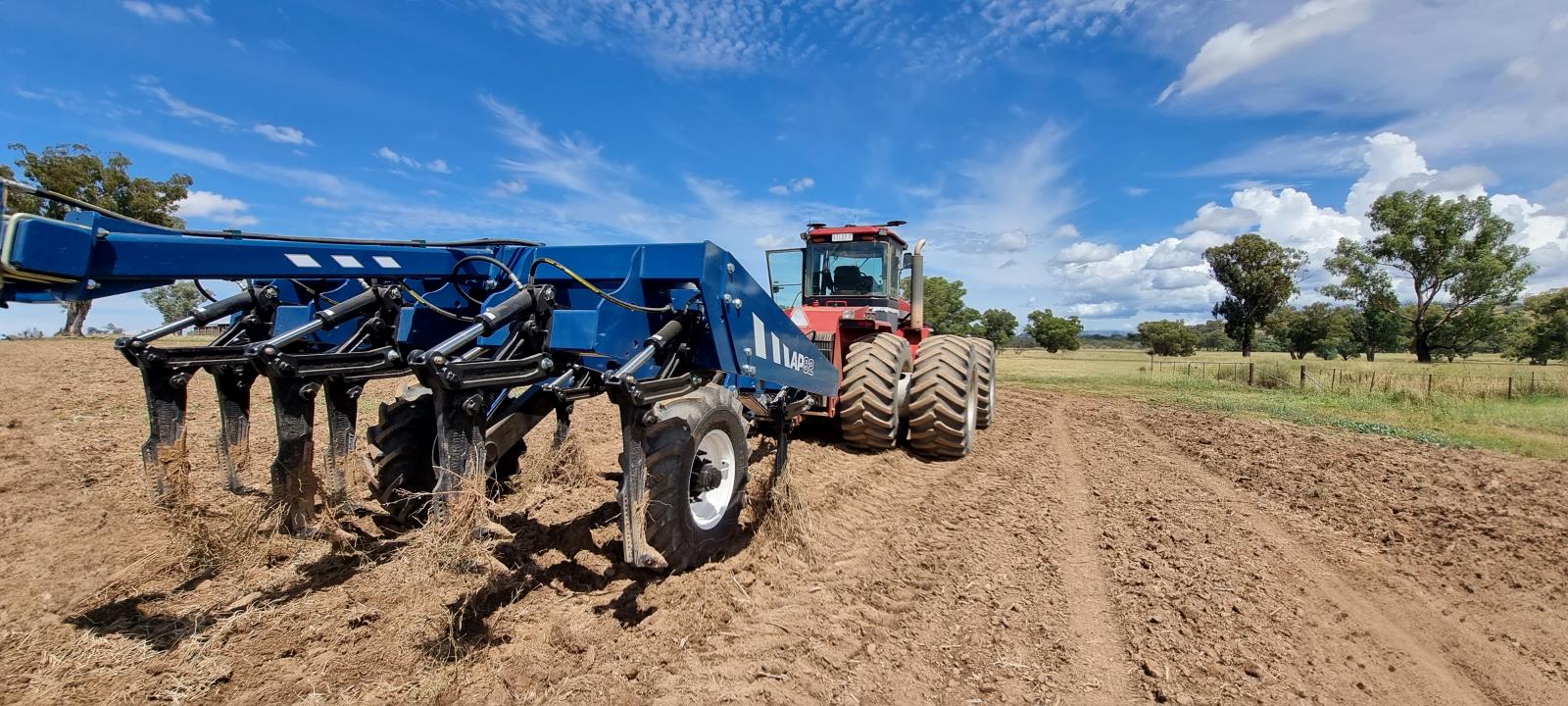

AP92 Hydraulic shank deep ripper and rear tow htch

Save time, fuel and money.

The leading trailing design of the AP92 ripper enables efficient ploughing

Efficient Configuration.

The leading/trailing tyne design consists of a single row of shallow leading tynes working in-line and ahead at depths of up to 450 mm. This then reduces the draft force required by the following tynes, set to penetrate up to 600mm.

The leading tyne configuration has been proven to increase towing ability and save fuel and time costs by up to 18%.

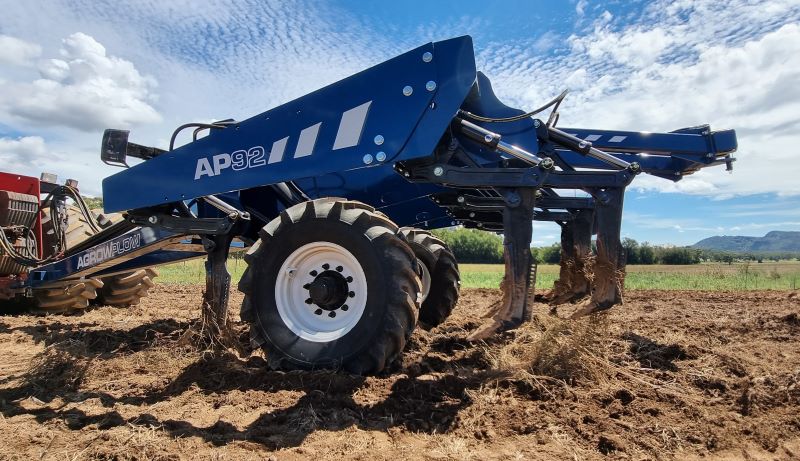

AP92 plough lifted out of the ground via hydraulic lift

Smart Ripping.

The Agrowplow AP92 is available in three configurations with 7 rows (11 shanks), 9 rows (14 shanks), or 11 rows (17 shanks). All models all based on Agrowplow's renowned #9 Shank Assembly

The #9 shank features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce drawbar requirements.

Full-length shinguards and Agrowplow's #9 blade offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

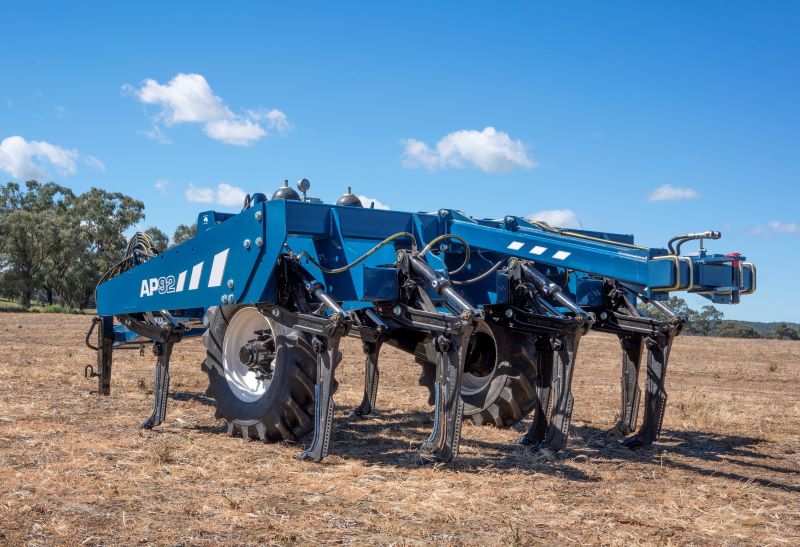

AP92 hydraulic 7 shank 500mm deep ripper plough

Hydraulic Level Lift.

A hydraulic level lift is included as standard, allowing full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

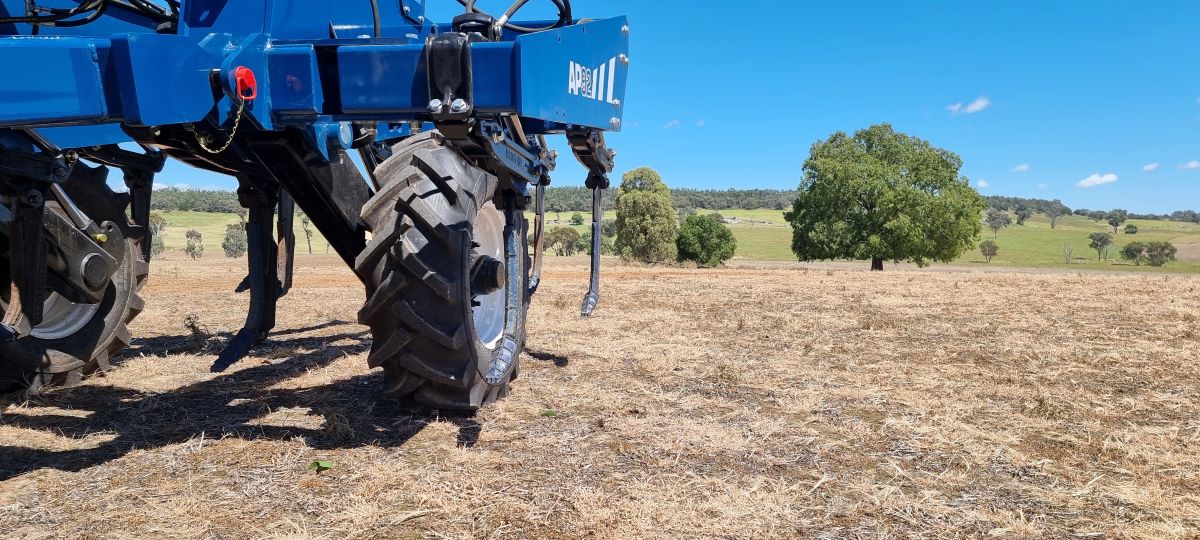

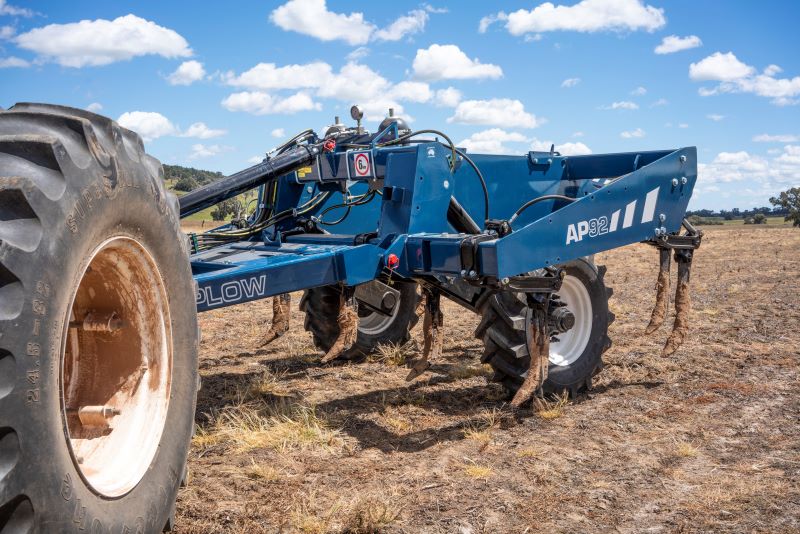

Agrowplow AP92 7 Shank Plough can rip up to 600mm depths
THE BENEFITS OF AGROWPLOW
Strength

Superior performance in tough Australian conditions.

Longer Lifespan

Keep going season after season.

Spare Parts

Comprehensive online spare parts store.

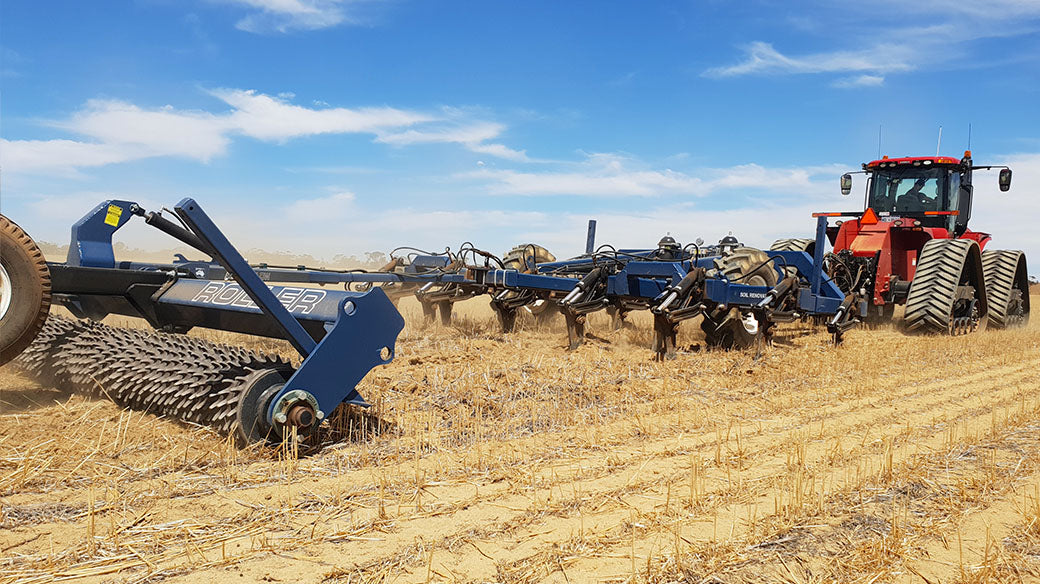

AP91 with flexi-roller Case IH tractor

Built to your needs.

The AP92's 200 x 200 x 9 mm RHS frame has the strength and durability needed to handle tough ripping .

Improve production outcomes with a range of shank options, including:

Add a rear tow hitch with or without hydraulic lines to host additional trailing implements, such as the Flexi-Roller to shatter soil clods and break up crusting.

Get an Instant Quote

Build and customise the perfect Agrowplow machine for your farm with our easy online pricing and configuration tool.
Build and Configure

AP92 Specifications

AP92 7 x 500 9 x 500 11 x 550
Working Rows 7 (11 shanks) 9 (14 shanks) 11 (17 shanks)
Row Spacings 500 mm 550 mm
Working Width 3.50 m 4.50 m 6.05 m
Max. Working Depth 600 mm
Shank Style #9 Shank Assembly
Breakout Rigid Lead: 4,790 kg (10,560 lbs) / Trail: 6,214 kg (13,700 lbs)
Hydraulic Lead: 1,846 kg (4,070 lbs) / Trail: 1,597 kg (3,520 lbs)
Drawbar Power 200-300 hp 300-400 hp 350-450 hp
Frame 200 x 200 x 9 mm RHS
No. Toolbars / Spacing 3 / 1,885 mm, 570 mm
Hydraulic Level Lift Yes
Linkage Type Trailing with 2" or 2 3/4" drawbar pin
Wheel Type 15.5/80-24 163A8/169A6 grip-star
CTF Spacings 2.15 m 3.15 m 4.62 m
Transport Width 3.40 m 4.44 m 5.93 m
Weight Rigid 4,800 kg 6,000 kg 6,800 kg
Hydraulic 5,800 kg 7,300 kg 8,300 kg
Shank Options Furrowers
Inclusion plates
Mulch blades
Sweeps
Fertiliser tubes
Machine Options Rear tow hitch
Hydraulic hose kit for RTH
Trailing Roller Options Flexi-Roller Mk2 / Mk2 HD
Flexi-Roller hydraulic lift kit

Some shank options are mutually exclusive or may be used only under specific circumstances or with particular configurations. Shank options may increase draft requirements. Consult your dealer before considering these options.

All effort has been made to ensure the information presented is correct however, features and specifications may change without notice. Weights, dimensions and specifications are an estimate for standard configurations only and may change slightly during the manufacturing process.

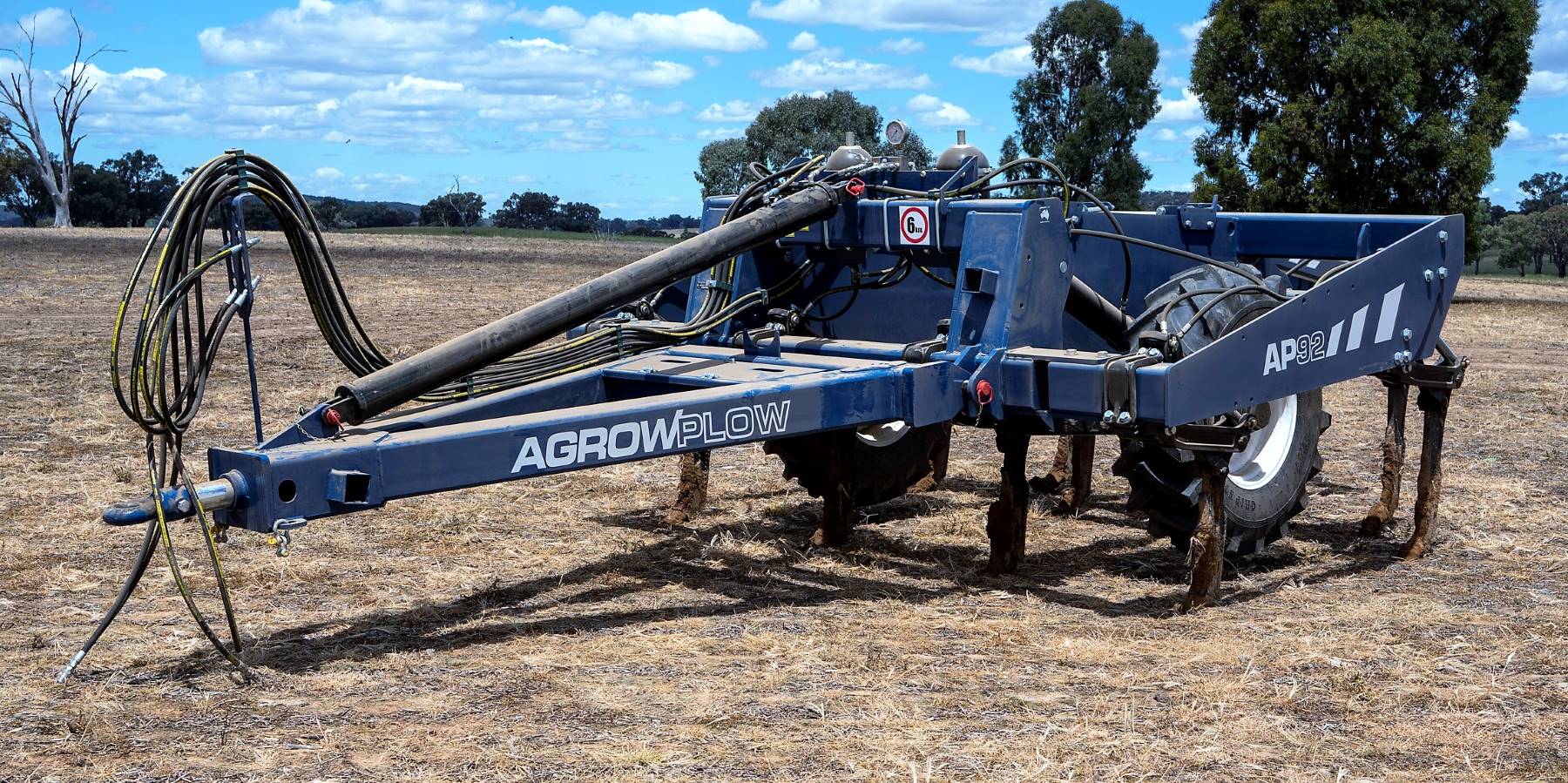

AP92 with shank undercarriage
