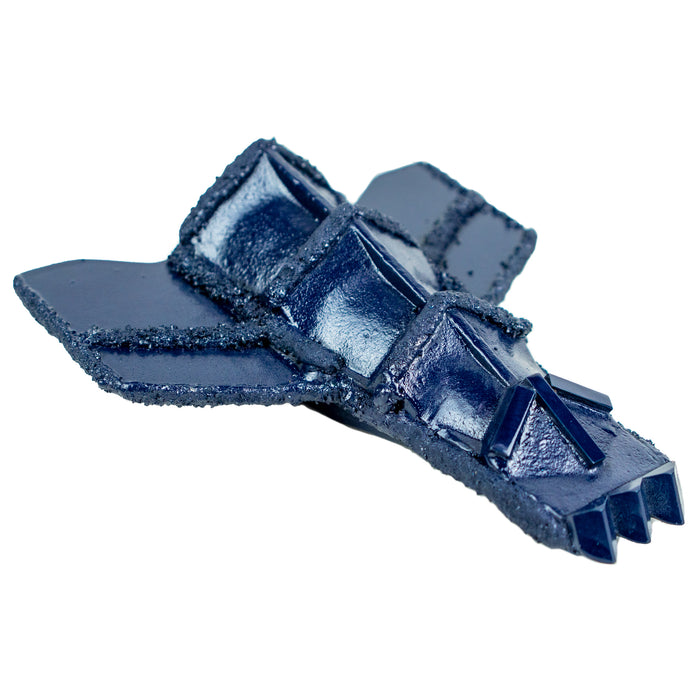

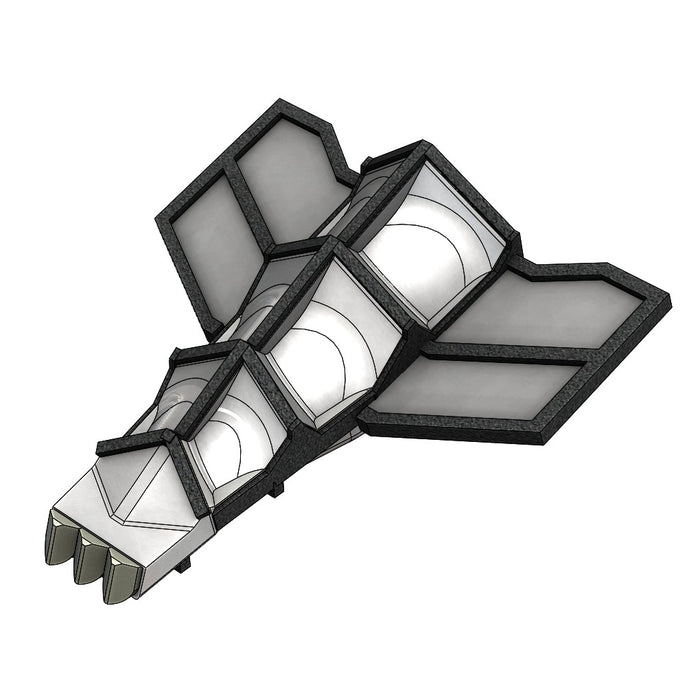

Blade #9 - GP Tungsten Tile Hardfaced with Bisalloy Wings and Roll Pin
Blade #9 - GP Tungsten Tile Hardfaced with Bisalloy Wings and Roll Pin Description:
This GP blade includes hardfaced Bisalloy wings designed to widen the soil lifting footprint and improve soil shatter.
The blade is secured to the shank with the included roll pin. A hardened roll pin punch (022-4030) is available separately to assist with removal and installation.
Key features
- 3x heavy-duty tungsten teeth across the leading edge for strong ground penetration and durability.
- 5x tungsten wear tiles across the blade face to protect high-wear areas.
- Tungsten hardfacing on ridges to bind dirt for extended blade life.
- Hardfaced Bisalloy wings widening the blade footprint to approximately 200mm
- Enhanced soil lift and improved shattering of subsurface compaction.
- Roll pin mounting system for easier and secure attachment to the shank.
About the #9 Blade:
The #9 blade is unique to Agrowplow and is designed as the premium ripping blade for your plough. Its job is to slice through the soil and reach the desired working depth. Acting as a wedge, the blade lifts and fractures compacted soil layers, improving aeration, water infiltration, and soil structure.
The #9 blade uses a “wear-back” ridge design that holds soil against the blade surface during operation. This creates a protective dirt layer so the blade runs with dirt-on-dirt contact rather than steel-on-dirt contact, reducing wear and extending blade life.
Alternate #9 blades available:
-
Blade #9 - GP Tungsten Tile Hardfaced
(122-1016) - general purpose blade suited to most soil conditions. -
Blade #9 - Hardfaced (for rocky soils)
(122-1009) - suited to rocky applications. -
Blade #9 - GP Tungsten Tile Plain
(122-1015) - for DIY hardfacing. -
Blade #9 - Inversion Hardfaced
(024-3002) - designed for the #9 Inversion Shank.
Compatibility:
Suits both hydraulic and rigid:
