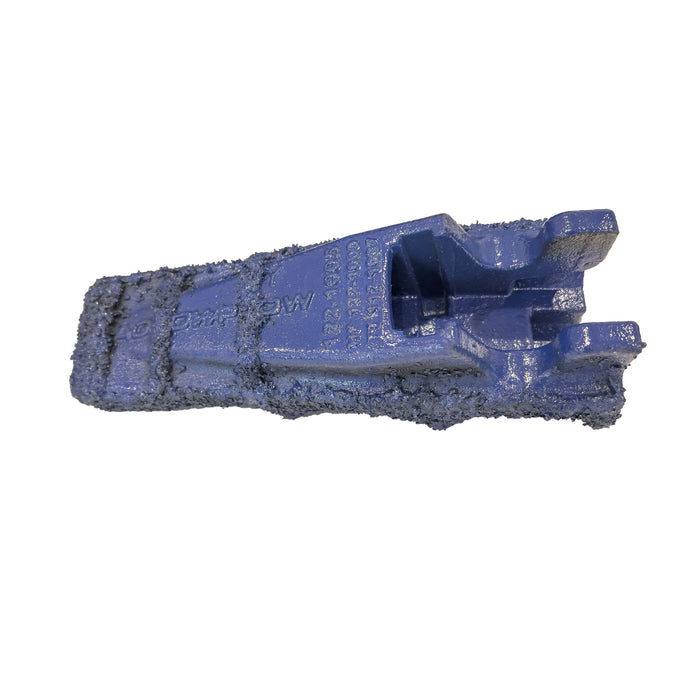

Blade #9 - Hardfaced with Roll Pin (for rocky soils)

This blade is designed for the most abrasive and rocky soil conditions where additional protection is required.

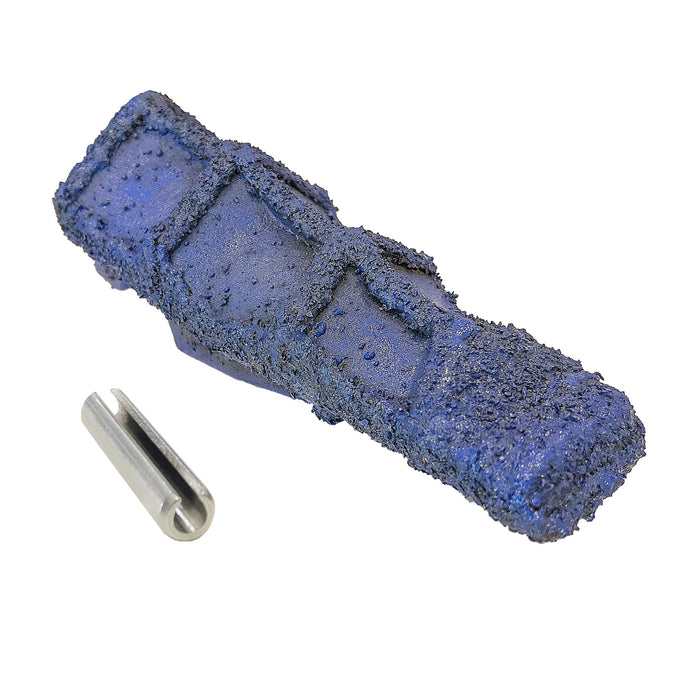

The blade is secured to the shank with the included roll pin (140-4077). A hardened roll pin punch (022-4030) is available separately to assist with removal and installation.

Key features

• Full tungsten hardfacing across the leading edges to maximise wear resistance.
• Reinforced tungsten hardfacing on ridges to protect high-wear areas in rocky conditions and bind dirt to the blade.
• Roll pin mounting system for easier and secure attachment to the shank.

About the #9 Blade:

The #9 blade is unique to Agrowplow and is designed as the premium ripping blade for your plough. Its job is to slice through the soil and reach the desired working depth. Acting as a wedge, the blade lifts and fractures compacted soil layers, improving aeration, water infiltration, and soil structure.

The #9 blade uses a “wear-back” ridge design that holds soil against the blade surface during operation. This creates a protective dirt layer so the blade runs with dirt-on-dirt contact rather than steel-on-dirt contact, reducing wear and extending blade life.

Alternate #9 blades available:

• Blade #9 - GP Tungsten Tile Hardfaced
  (122-1016) - general purpose blade suited to most soil conditions.
• Blade #9 - GP Tungsten Tile Hardfaced with Bisalloy Wings
  (122-1011) - for enhanced soil lift.
• Blade #9 - GP Tungsten Tile Plain
  (122-1015) - for DIY hardfacing.
• Blade #9 - Inversion Hardfaced
  (024-3002) - designed for the #9 Inversion Shank.

Compatibility:

Suits both hydraulic and rigid:

• #9 Shank Assembly
• #8–9 Hybrid Shank Assembly
