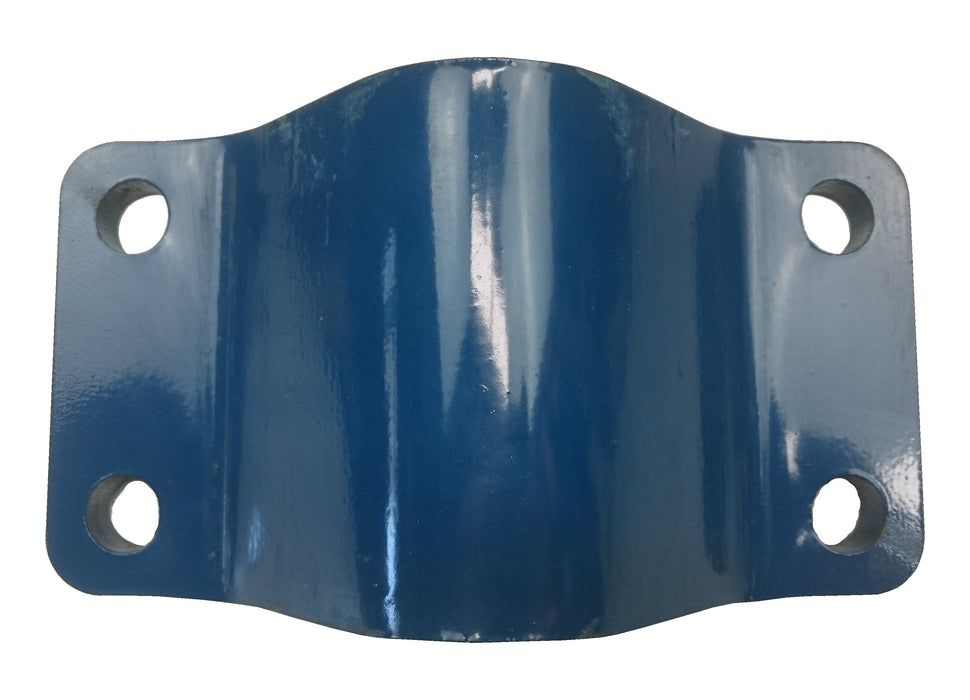

CLAMP PLATE BOTTOM TOW LUG

Cat 3 RHS Lift Arm Mount Clamp

This clamp is used in tandem with Bottom Tow Lug (113-3023) to clamp around 100x100 RHS and form a single Cat-3 linkage mount point on machinery frames and implements.

Specifications:

• Material: 16mm plate

Fasteners required to connect 113-4320 and 113-3023:
(not included unless purchased as kit)

• 4 x Bolt 3/4" x 3" UNC G8 Zinc (133-3080)
• 4 x Washer Flat 3/4" Think Zinc F436 (135-1010)
• 4 x Nut Nylock 3/4" UNC Zinc Coarse (134-1025)

FULL CAT3 BOTTOM LIFT ARM KIT AVAILABLE:

Our Cat 3 Tow Lug Assembly Kit - Pair (113-2200) includes two complete sets of plates and clamps, including all required hardware to create a complete bottom-arm three point linkage connection to the tractor.
