Shank Assembly #9v2 Hydraulic

Shank Assembly #9v2 Hydraulic

SKU 006-1001
by Agrowplow
$2,400.00 - $2,400.00
$2,400.00
$3,200.00
$3,200.00 - $3,200.00
$3,200.00
Ex GST

The #9 shank is stronger and smarter with innovative features that make it excellent for deep ripping in tough conditions. The hydraulic shank has a 1846kg (4070lbs) maximum breakout at the blade, so you can see great results even in tough, compacted subsoils.

The unique scissor action design - not seen on any other plough brand - makes the #9 shank even more effective. Multiple pivot points on the armature allow the shank to break backwards along a much wider arc, preventing stubborn subsoil objects from latching on and breaking the shank.

It also has a sturdy, narrow profile to maximise hardpan shatter without soil inversion, and can operate at lengths of up to 600mm.

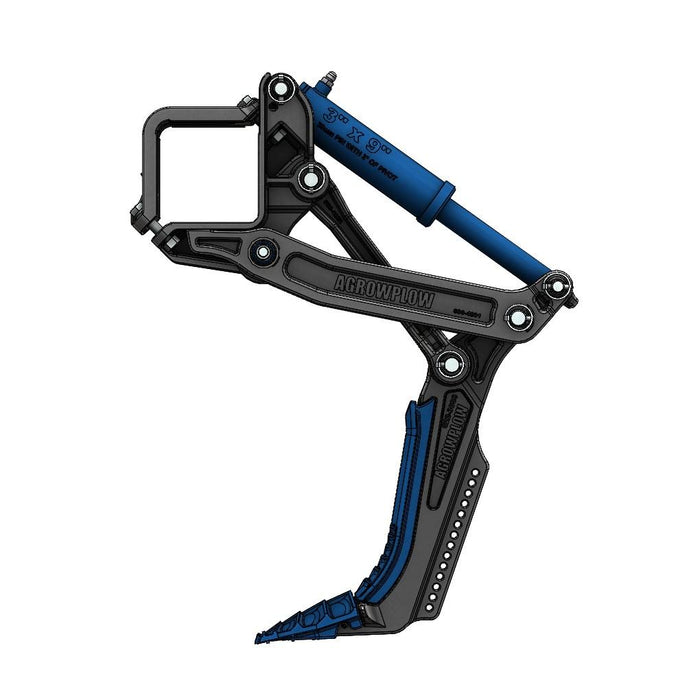

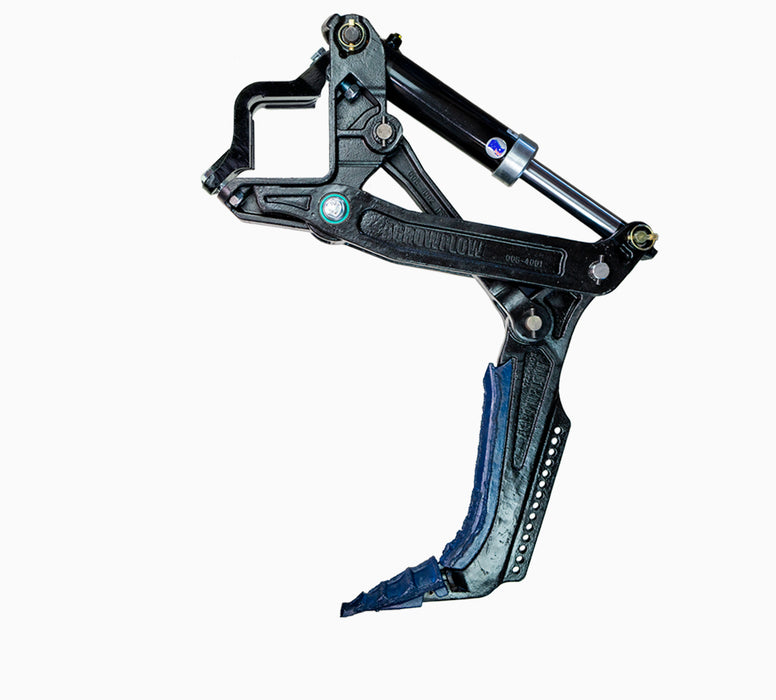

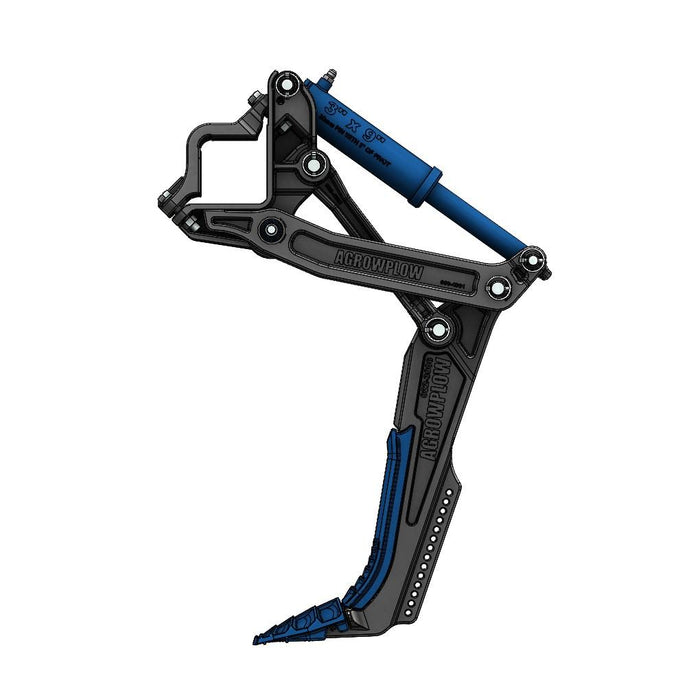

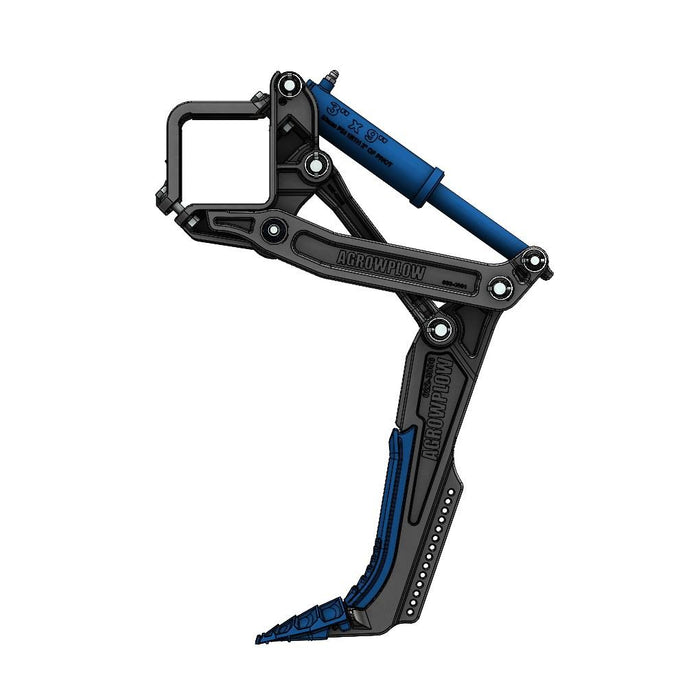

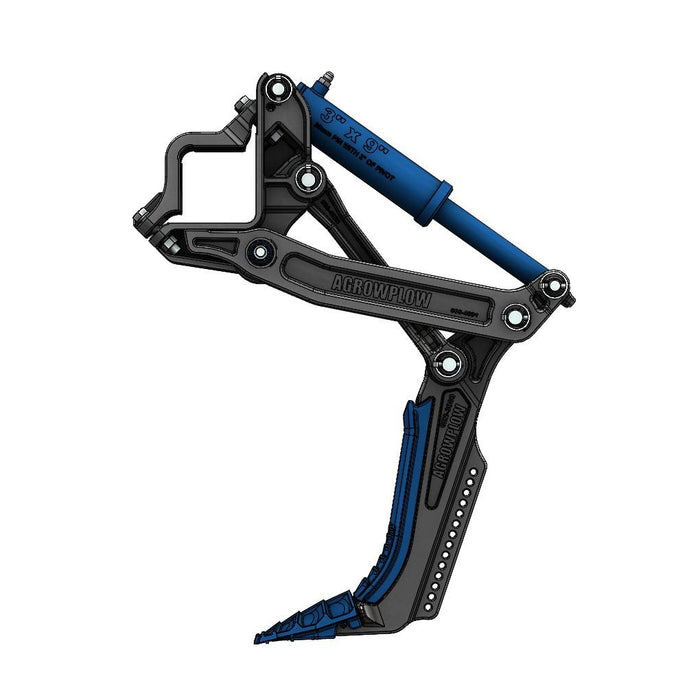

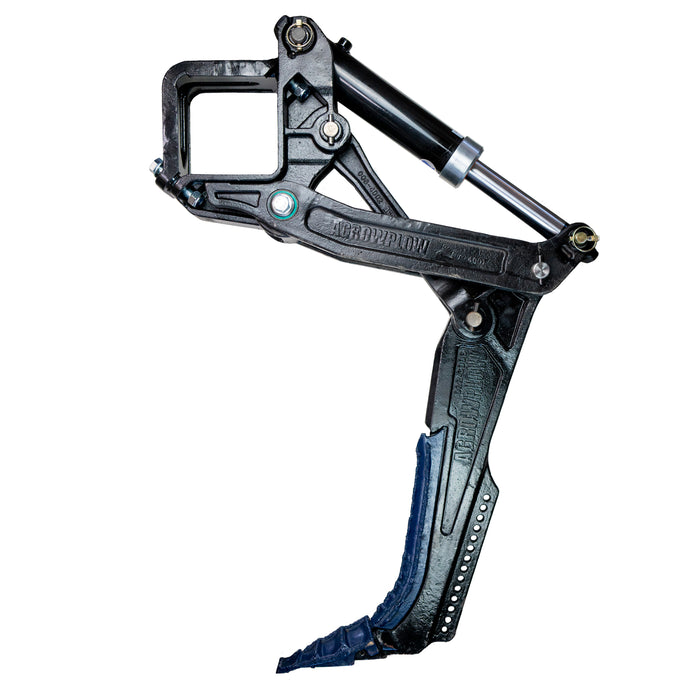

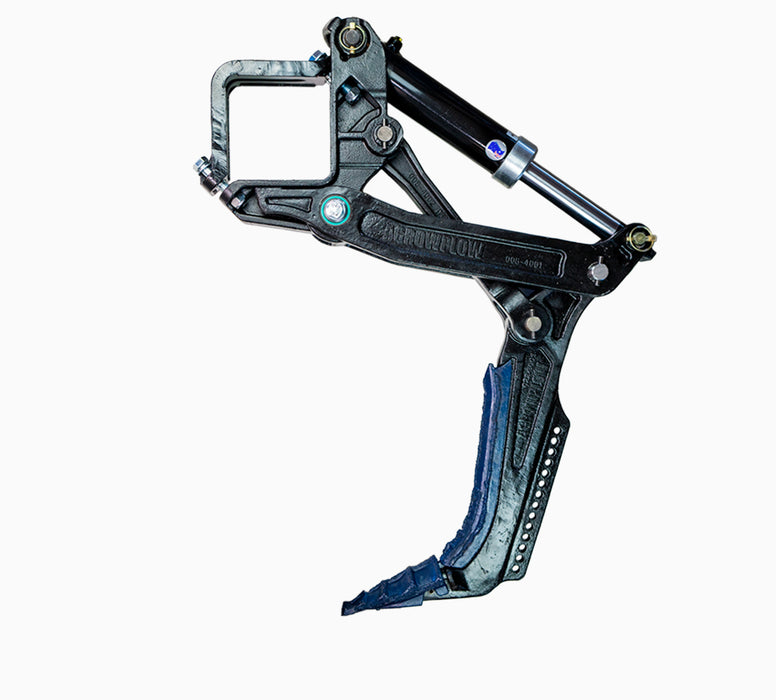

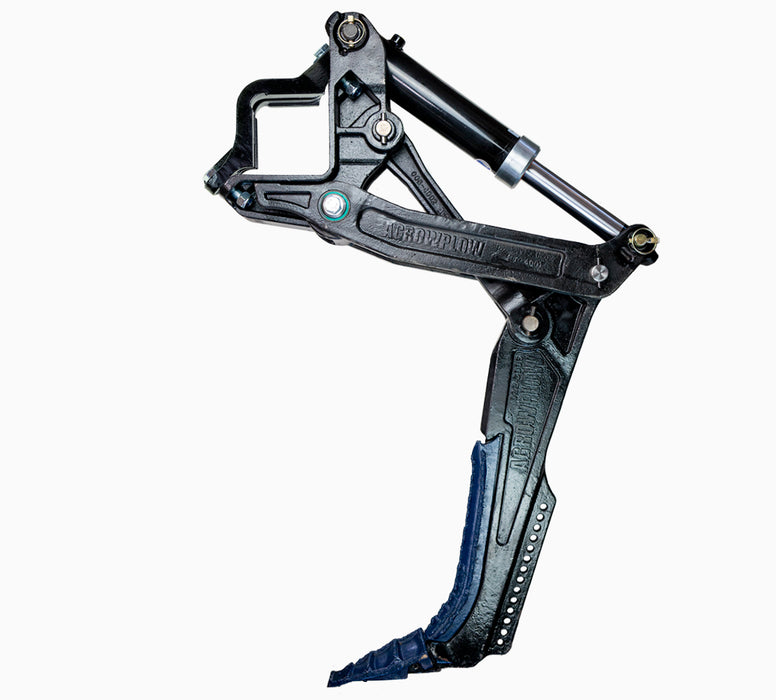

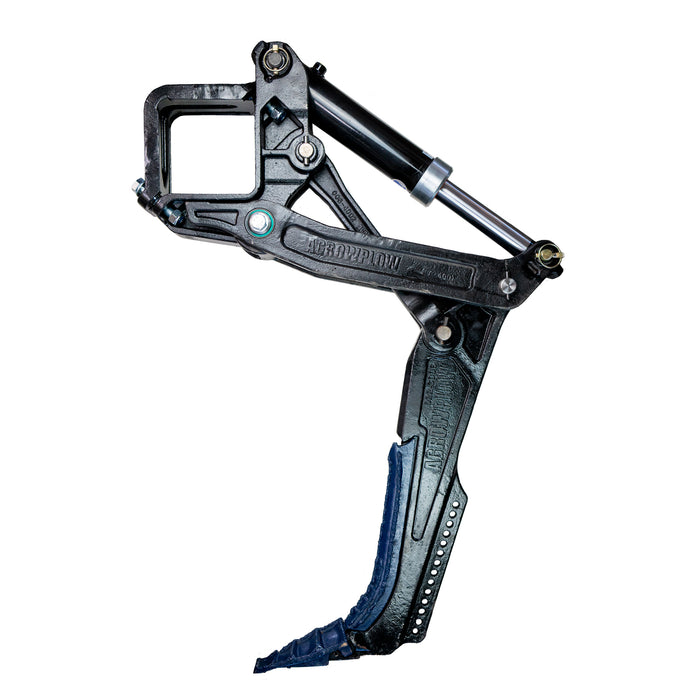

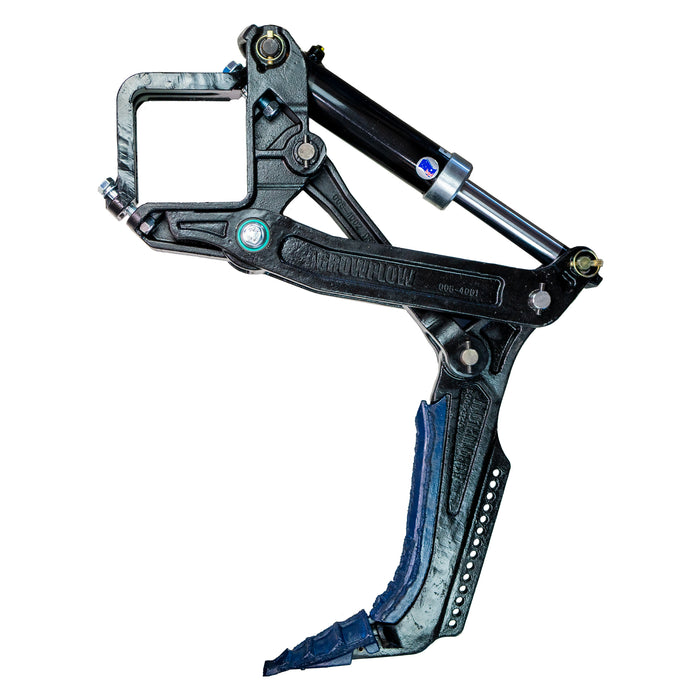

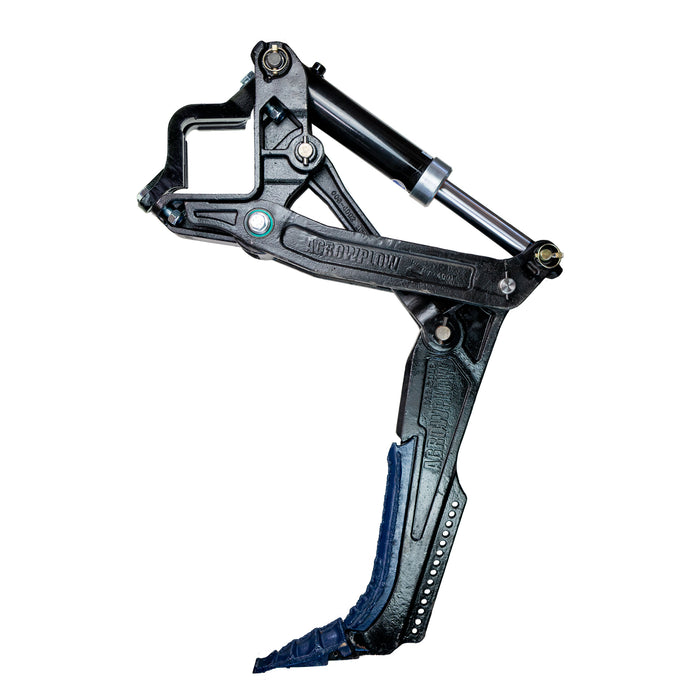

The #9 shank assembly includes shank, shinguard, rock-toothed and hardfaced blade, and complete mounting assembly. It is available for RHS mounts of either 150x150mm or 200x200mm and with a shank length of 450mm or 600mm.

Note
The 600mm shank is not suited to all conditions. Consult Agrowplow Sales before considering this option.
Some assembly required.

Model SKU: 006-1001_006-1003_006-1011_006-1013; Frame size: 150 x 150mm_200 x 200mm; Working depth: 450mm_600mm_450mm_600mm; Max. breakout: 1,846kg; Under-frame clearance: 850mm_1,000mm_850mm_1,000mm; Wear part options:



#9 Shank Assembly AP51, AP71, AP81, AP91: PartsManual_UC_no9shank_1808; #9 Hydraulic Shank Assembly AP51, AP71, AP81, AP91: PartsManual_UC_No9v2Shank_2006
RHS Size: 150x150mm
Shank Length: 450mm
}
